Auto Electrical BCQZ-2B Starter and Alternator Test Bench
Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.
Details

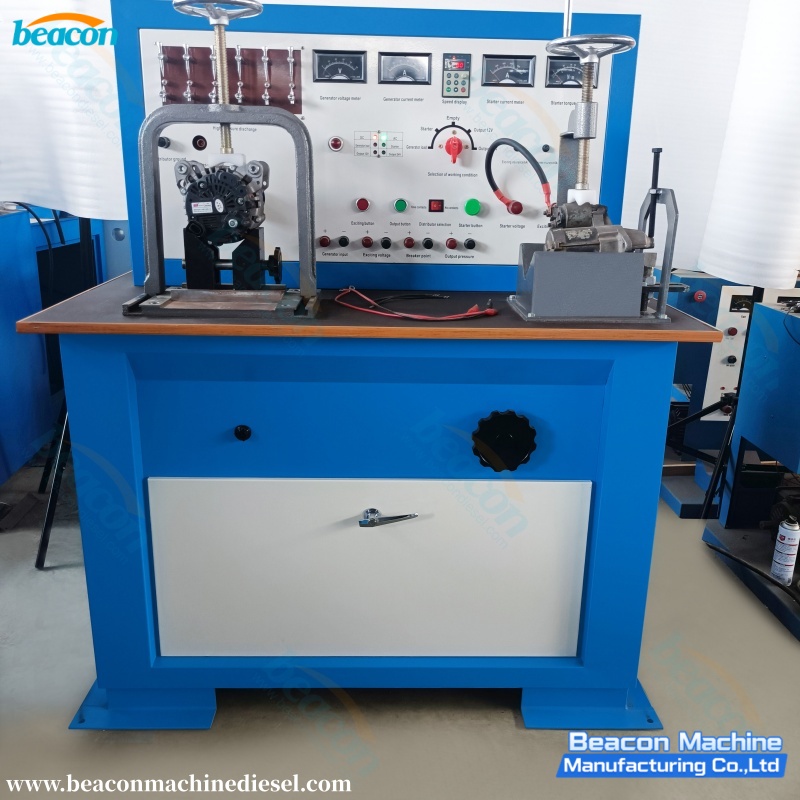

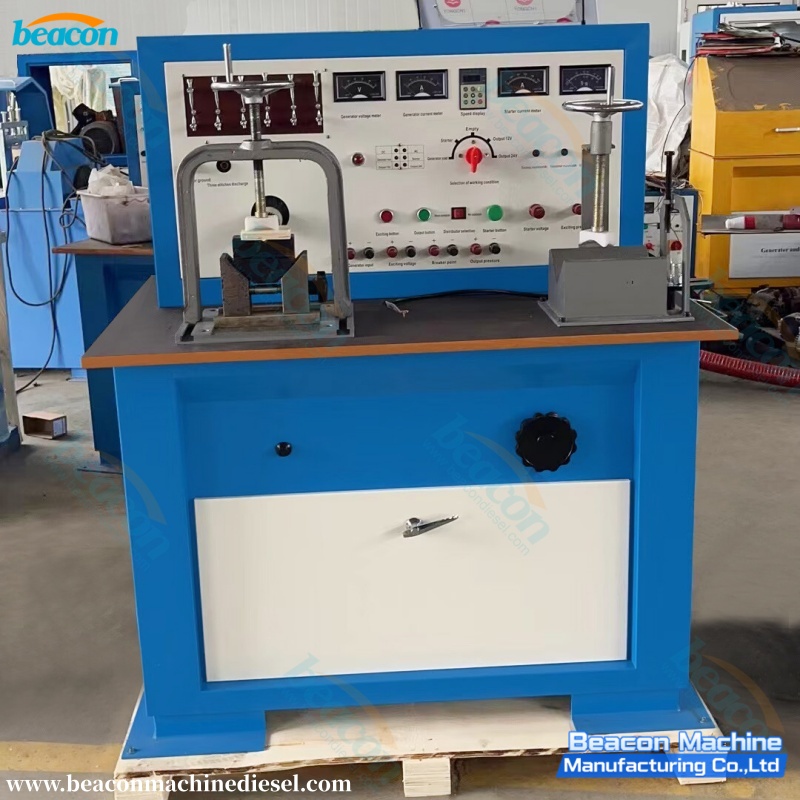

Auto Electrical BCQZ-2B Starter and Alternator Test Bench
BCQZ-2B is a robust and effective solution for general automotive electrical repair. It is designed to test the charging performance of alternators and the running status of starters. This model utilizes a resistance load bank for alternator testing and supports no-load (free run) testing for starter motors. Equipped with digital meters, it provides clear readings of voltage, amperage, and speed. It is a cost-effective choice for workshops focusing on electrical component verification.
BCQZ-2B is a robust and effective solution for general automotive electrical repair. It is designed to test the charging performance of alternators and the running status of starters. This model utilizes a resistance load bank for alternator testing and supports no-load (free run) testing for starter motors. Equipped with digital meters, it provides clear readings of voltage, amperage, and speed. It is a cost-effective choice for workshops focusing on electrical component verification.
Auto Electrical BCQZ-2B Starter and Alternator Test Bench Advantage
User-Friendly Design: Simple manual operation with clear digital meter displays makes it easy to learn and use. Versatile Testing: Capable of handling both 12V and 24V automotive electrical systems. Reliable Loading: Uses a resistance bank for stable alternator load testing up to 40A. Cost-Effective: Focuses on essential functions (No-load starter test) to provide a high value-for-money solution.
parameter
Main function
1.It uses variable frequency speed regulation
2.It displays result by pointer instrument .
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It possesses high control sensitivity and strong controllability.
7.It is with charge fuction Test items: Test Starter: 5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M Test Alternator & Generator: 1.5 KW, (12V 24V 48V), 5000RPM Test generator: no load and load ,speed, voltage,current; Test starter: no load, load, braking torque; Test electronic regulator: regulate voltage and current, limit current; Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact; Test battery: voltage; test electric horn: sound; Test electric wiper: action; Test ignition coil
1.It uses variable frequency speed regulation
2.It displays result by pointer instrument .
3.It is easy to learn and operate.
4.It is with fuse protection.
5.It is with indicator lamp following each step and warn you the problems.
6.It possesses high control sensitivity and strong controllability.
7.It is with charge fuction Test items: Test Starter: 5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M Test Alternator & Generator: 1.5 KW, (12V 24V 48V), 5000RPM Test generator: no load and load ,speed, voltage,current; Test starter: no load, load, braking torque; Test electronic regulator: regulate voltage and current, limit current; Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact; Test battery: voltage; test electric horn: sound; Test electric wiper: action; Test ignition coil
| Model | BCQZ-2B |
| Application | 12V & 24V Vehicles |
| Motor Power | 1.5 KW (High Power Drive) |
| Inverter Power | 1.5 KW |
| Alternator Speed | No-load: 0-3000 RPM / Load: 0-1500 RPM |
| Alternator Current Max | 0 - 40 A |
| Starter Current Max | 0 - 1000 A |
| Starter Load | No Load (Free Run) |
| Alternator Load | Resistance Type |

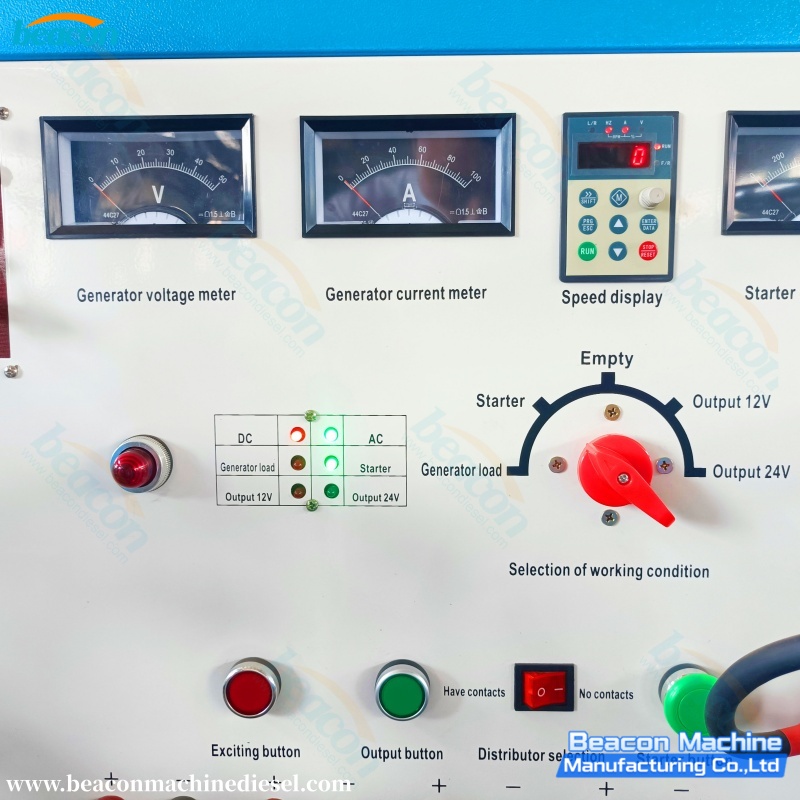

| Display Mode | Digital Meter Display |
| Dimensions | 1200 × 1000 × 1480 mm |
| Volume | 1.78 CBM |
