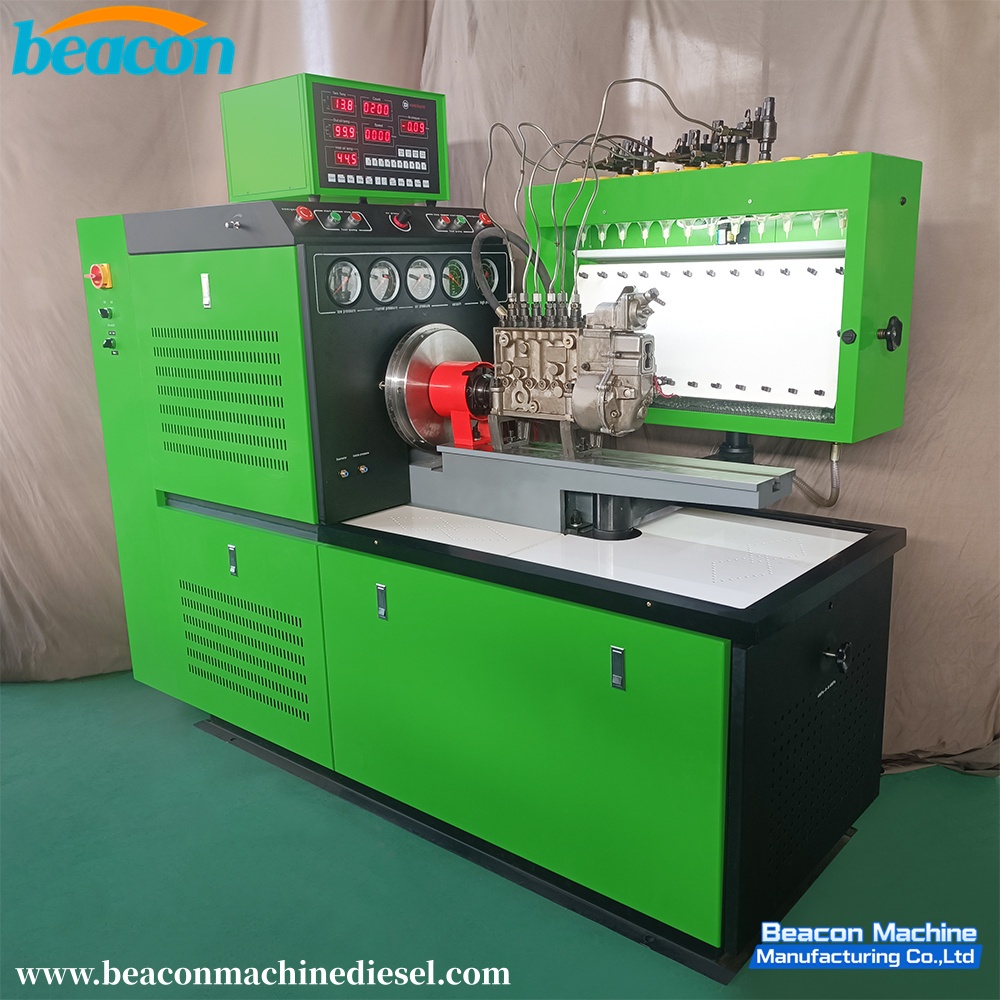

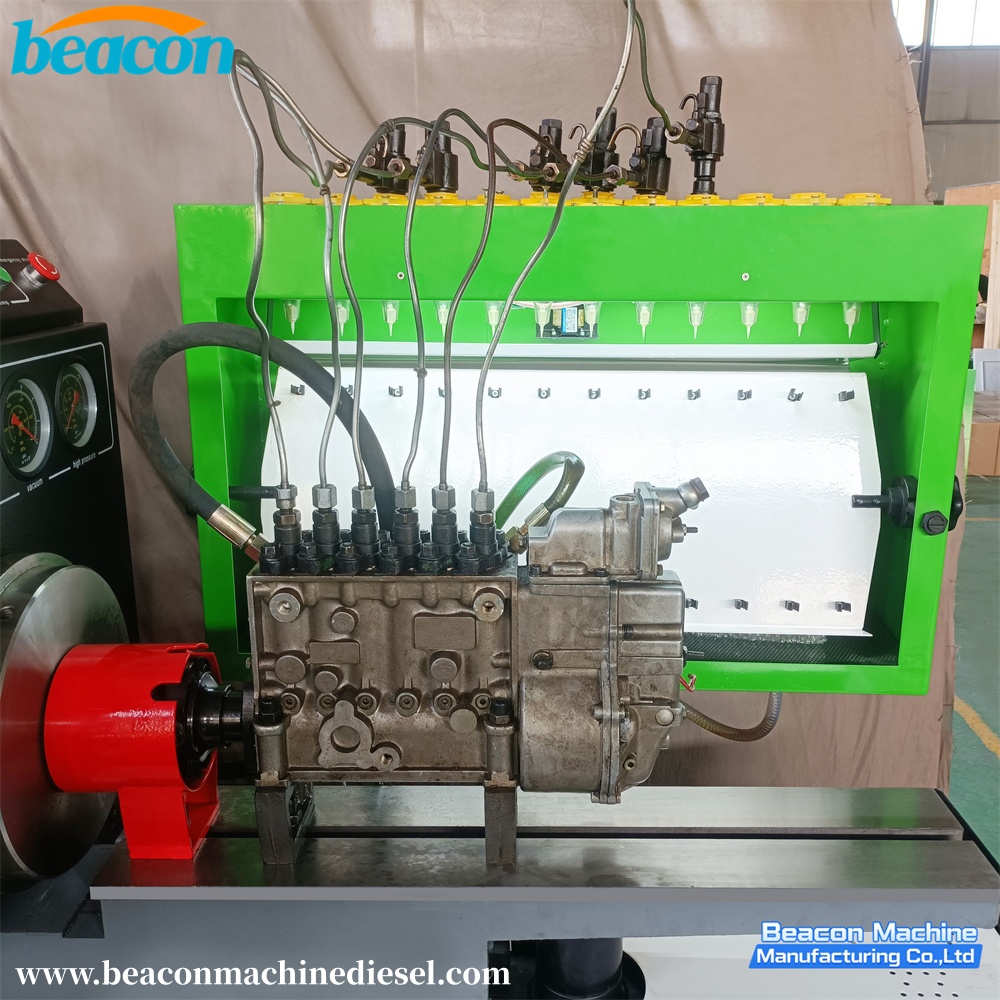

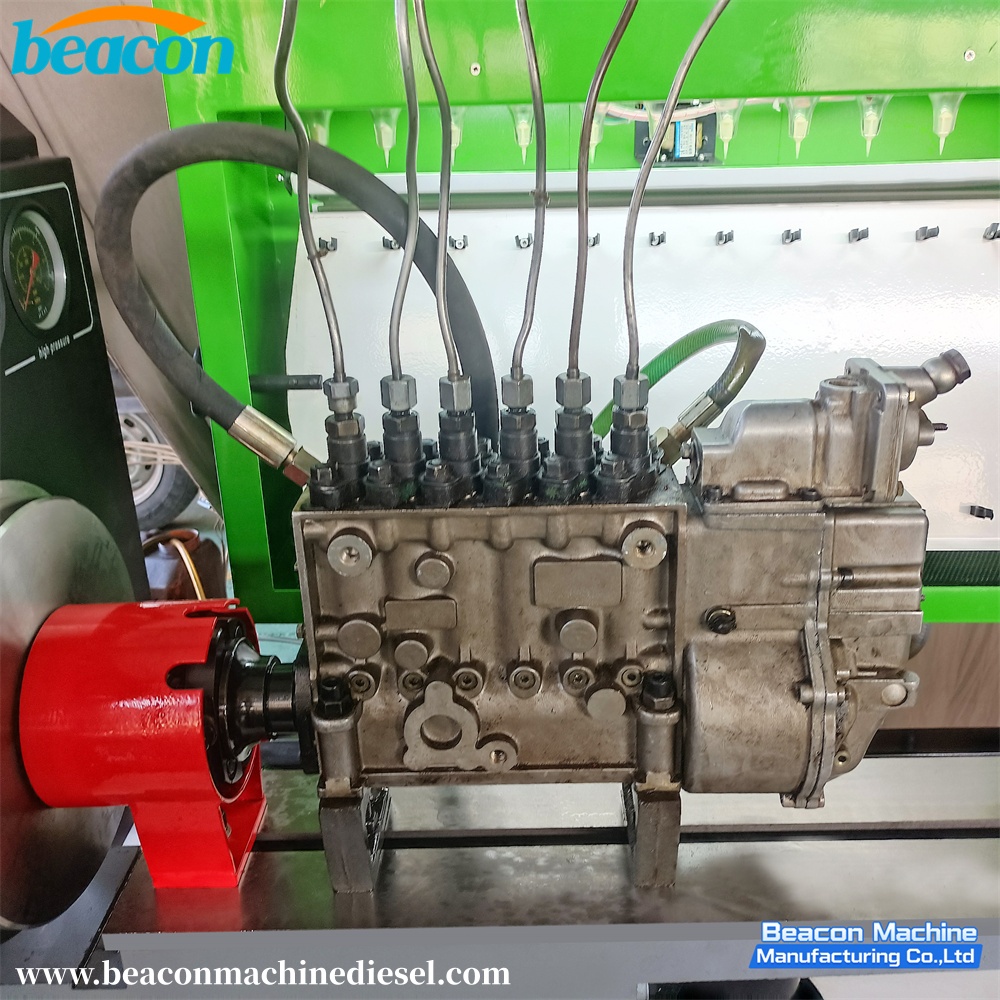

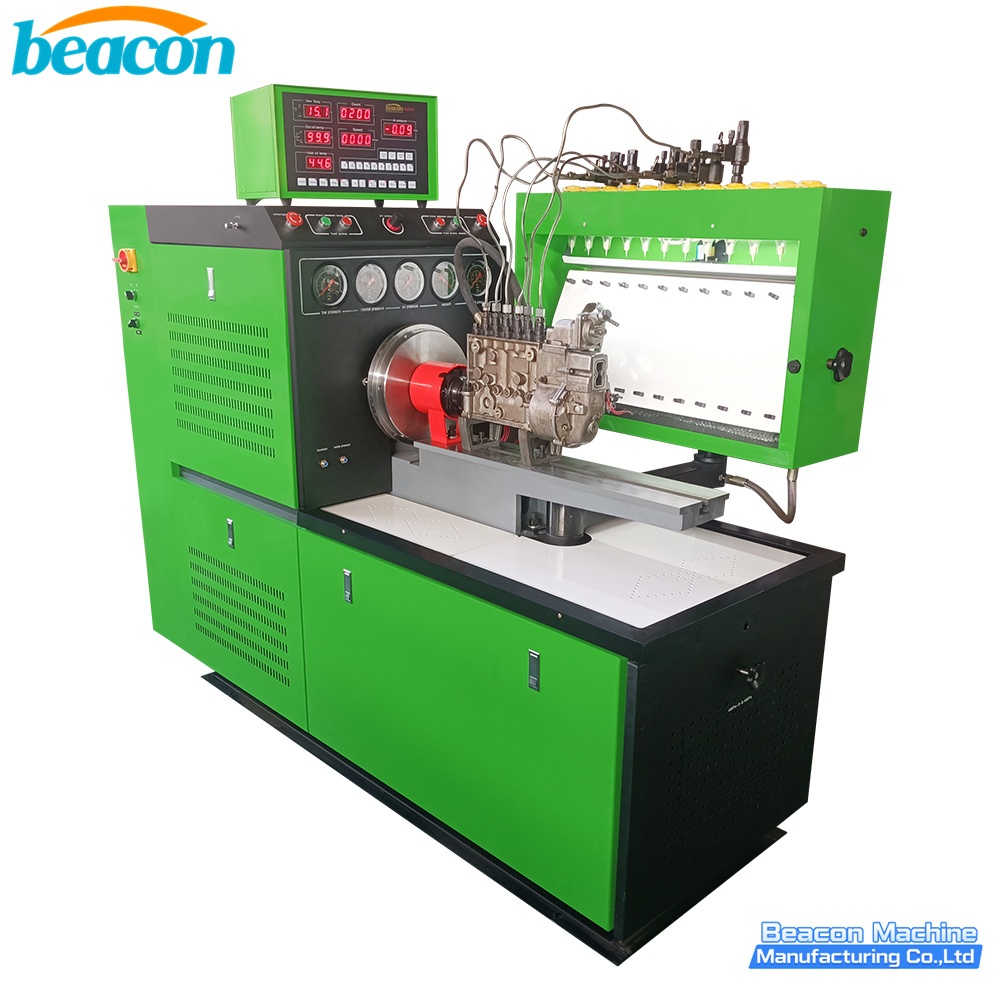

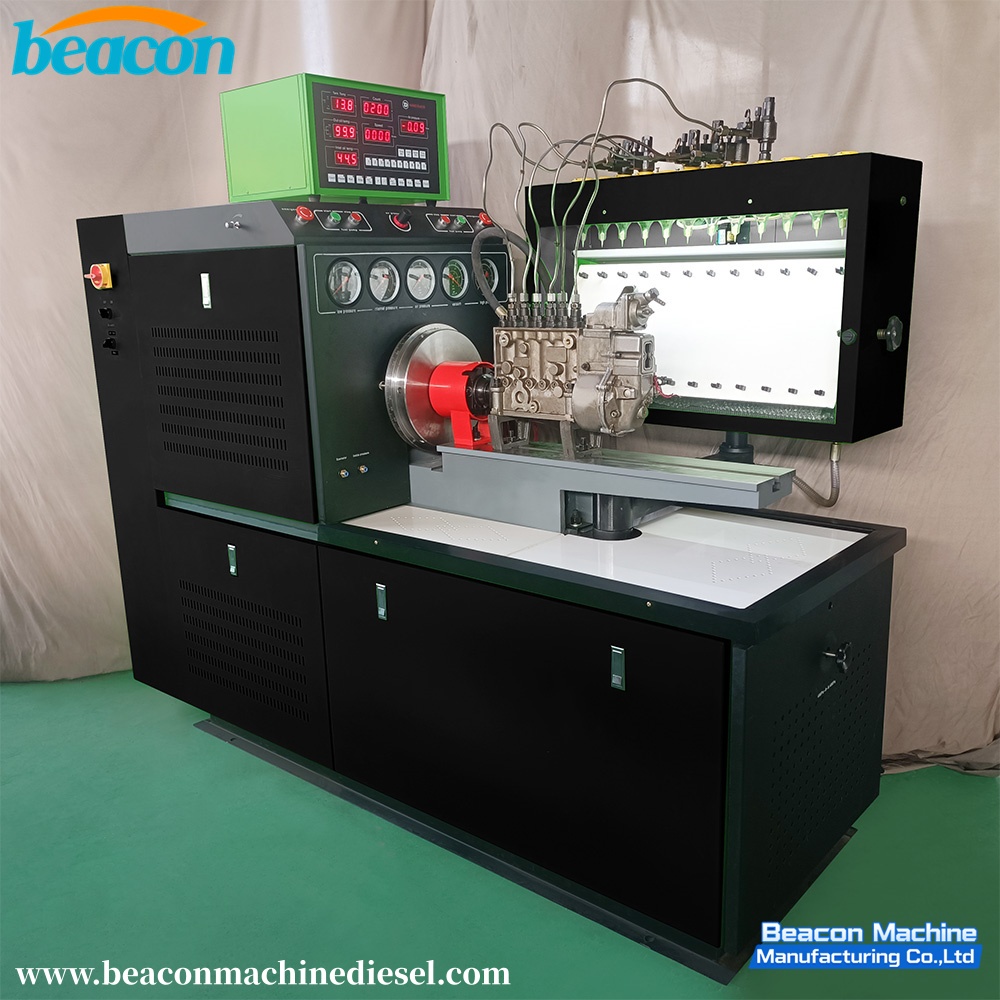

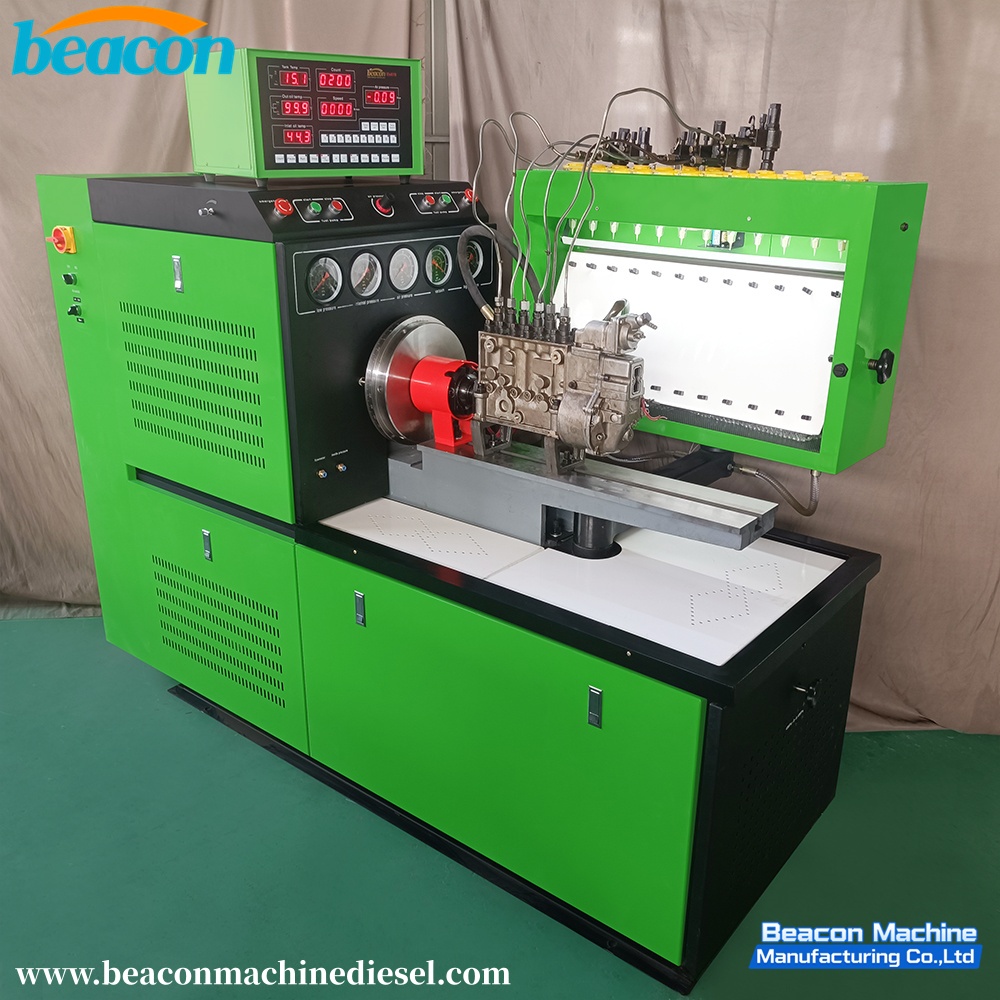

Automobile Electronic ES619 High Quality Diesel Fuel Injection Pump Test Bench Stand
Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.
Details
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
Option function
Checking the travel of stroke
Oil lubricate
Forced cooller
Automobile Electronic ES619 High Quality Diesel Fuel Injection Pump Test Bench Stand Advantage
Market Best-Seller: ES619 is one of the most popular Hot-Selling models globally, known for its balance of performance and cost-effectiveness.
Full-Function Capability: Capable of performing every standard calibration task required for Euro II pumps, eliminating the need for auxiliary equipment.
Digital Precision: Features a high-visibility digital display interface for accurate RPM and stroke counting (distinct from simple gauges).
Stable Operation: The Large Inertia Flywheel ensures speed stability even when testing high-pressure large-flow pumps.
Workshop Ready: Comes fully equipped with Forced Cooling (R22) and an Oil Lubrication system, ready for continuous industrial use.
Expansion Ports: Designed with interfaces for optional upgrades like advance angle measurement, making it a future-proof investment.
parameter
1 | Frequency Drive | A.C. Frequency Drive |
2 | Main Motor | 380V 3 phase 15HP(11KW) |
3 | No.of Cylinders | 12 Cylinders |
4 | Tachometer | Electronic Digital 0-9999 R.PM. with the accuracy of +-1R.P.M(Both Sides) 100-1200 Strokes( in steps of 100 strokers |
5 | Stroke Counter | 100-1200 Strokes (in steps of 100 strokers) |
6 | Fuel Supply | By vane pump, oil supply pressure 6.3Mpa, displacement 10 mL/r, speed 1450R/min |
7 | Fuel Pump Motors | 1.5 H.P 380V 3 phase |
8 | Pressure Gauge | high pressure: 0~4Mpa lo w pressure: 0~0.4Mpa internal pressure: 0~1.6Mpa air pressure: 0~0.16Mpa Vacuum :-0.1~0 Mpa |
9 | Speed Range | 20～4000r/min (0, 1, 2, 3～～～9 gears, 10 gears in total) ,And equipped with manual speed adjustment knob |
10 | Test Injectors | 12 Nos.in 12 cyl Fitted with Calibraling Nozzle set at a standard pressure. |
11 | Phasing pressure | Phasing recorded on degree dial |
12 | Phasing Fuel Tank | 40L |
13 | Simulator | PYBK-3000 GREEN |
14 | Inverter | 380V 11KW 3-phase |
15 | DC power supply | 12/24V |
16 | Glass measuring cylinder | 45ML 150ML |
17 | Temperature control range: | 0～99.9℃ (precision 0.5℃) |
