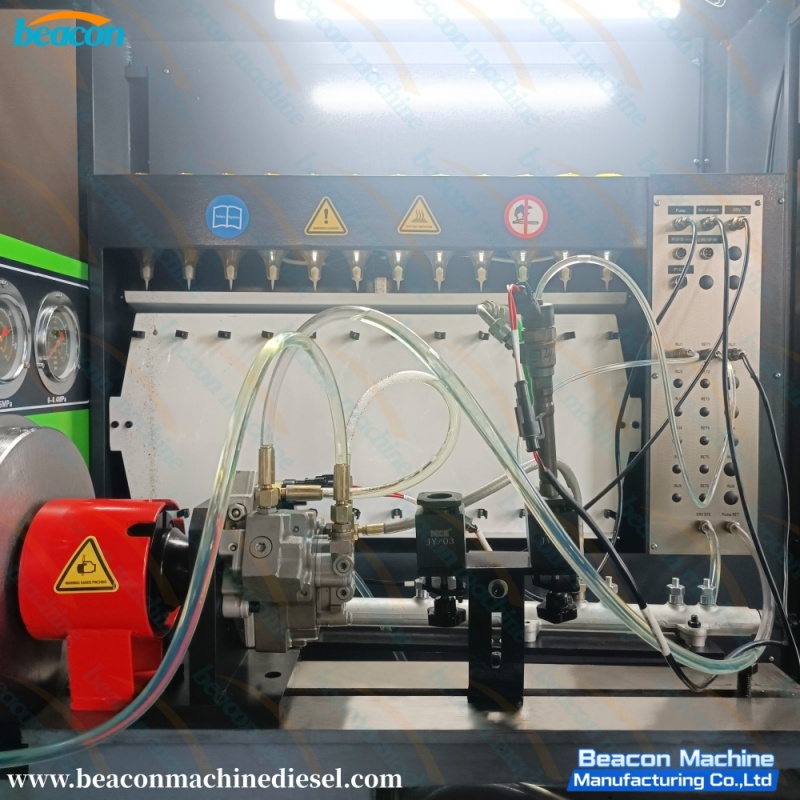

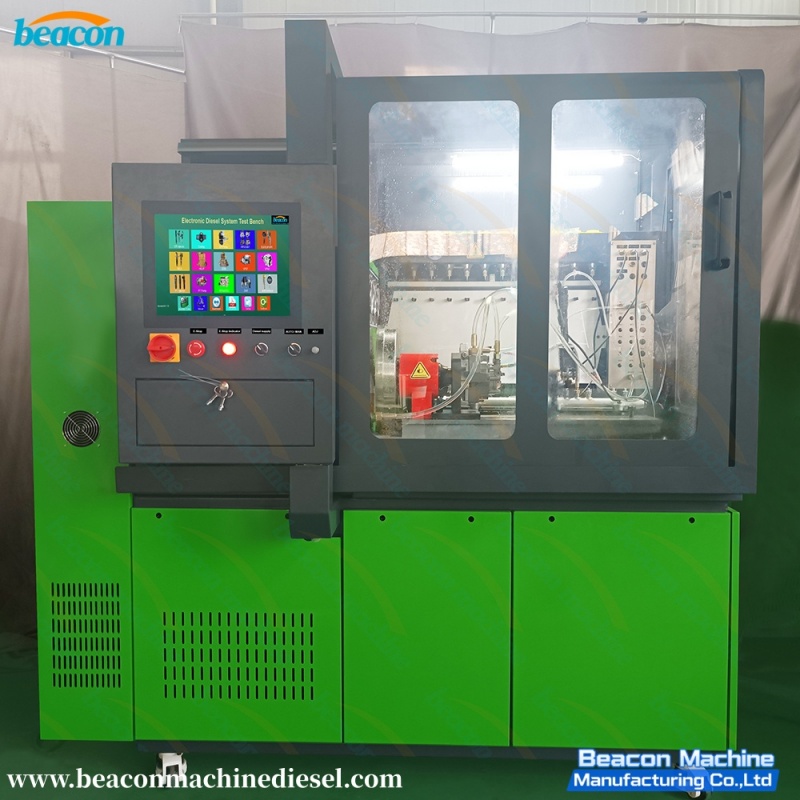

BCS815S EUI EUP HEUI Common Rail diesel Fuel Injector Pump test Bench

BCS815S EUI EUP HEUI Common Rail diesel Fuel Injector Pump test Bench
BCS815S mainly test for common rail pump and injector, and diesel fuel injection pump(Mechanical Pumps)
1.Motor power:7.5KW, 11KW, 15KW, 18.5KW, 22KW
2.Industrial PC with touch screen
3.Compressor cooling
4.Oil tank(including heating,refrigeration,liquid level detection,temperature detection)
5.Diesel tank(including heating,refrigeration,liquid level detection,temperature detection)
6.Flow meter(German ZDM) detecting the fuel injection flow rate
7.Flow meter(German ZDM) detection of common rail pump
8.Flow meter(German KRACHT) to detect oil flow
9.Flow meter(German KRACHT) detection of diesel oil return flow
10.2sets of B-OSCH common rail +DRV
11.Oil tank temperature sensor
12.Diesel fuel tank temperature sensor
13.Diesel supply temperature sensor
14.Diesel return temperature sensor
15.Oil pressure sensor
16.Diesel supply pressure sensor
17.Diesel return pressure sensor
18.Diesel pump internal pressure sensor
19.Oil pressure closed loop control module
20.The device is convenient to move and position the roller
21. Adjustable cylinders numbers: 12
22. RPM:0-4000
23. Support RPM Pre-set.
24. Temperature control system.
25. Positive Pressure System.
26. Negative Pressure System.
27. Air Supply
28. DC Power supply.
29. Internal Pressure of VE Pump
30. Oil return of VE Pump
31. Travel of Tooth Bar (Optional)
32. Oil Lubricate. (Optional)
33. Capability with Pump Type: All in-line and Rotary Pump .

The operating environment, conditions and specifications of the rail injector test bench Temperature (during operation) ************* － 10 ～ 50℃ (14 ～ 122°F) Temperature (non-operating) *************－20～70 ℃ (－4～158°F) Relative humidity (during operation) ********* 15%～ 95% at 40 ℃(non-condensing) Relative humidity (non-operating)*******90% at 65 ℃(non-condensing)
Standard features:
1. Test common rail fuel injection + piezoelectric injector

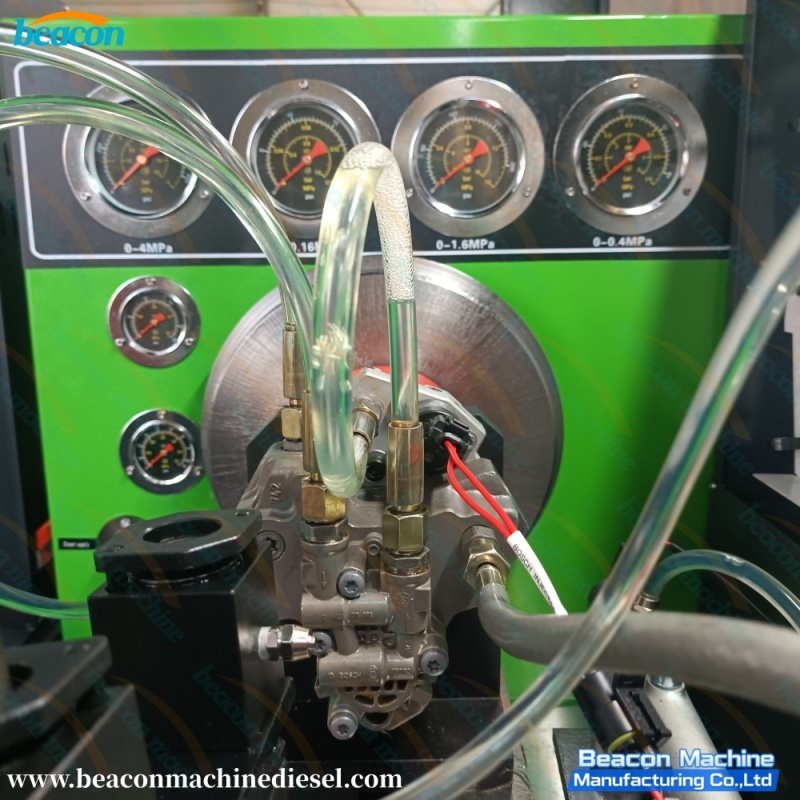

2. Test common rail pump
3. Test the function of Denso HPO pump
4. Test HEUI dual oil circuits (standard C7 C93126B clamp new/old model, engine oil + diesel, CR815S)

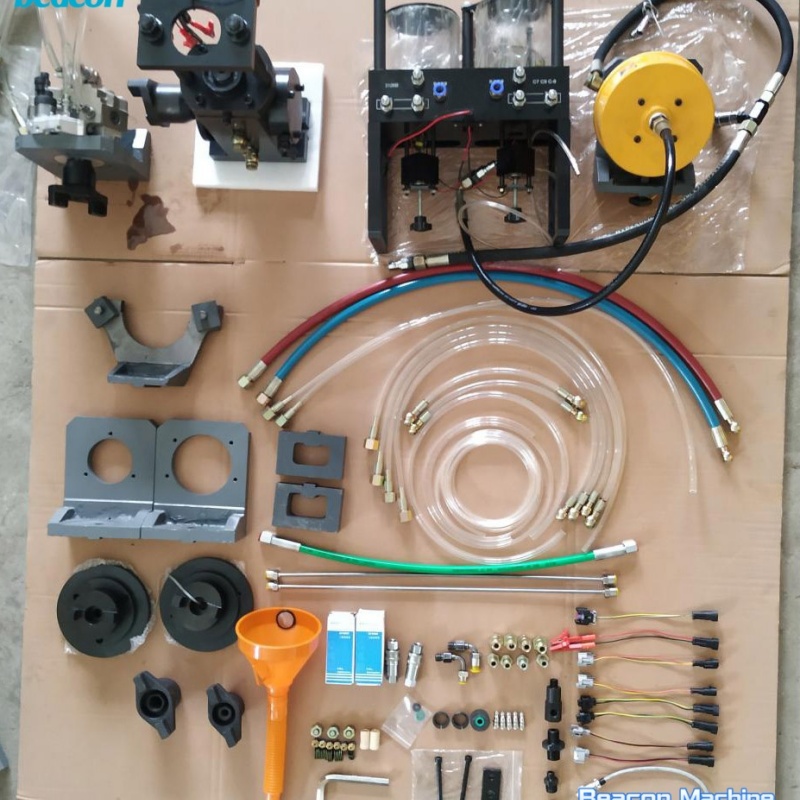

5. Test EUI EUP with 10 adapters
