BCZY-2C Auto Electrical Turbocharger Calibration Machine Test Bench

   BCZY-2C Auto Electrical Turbocharger Calibration Machine Test Bench

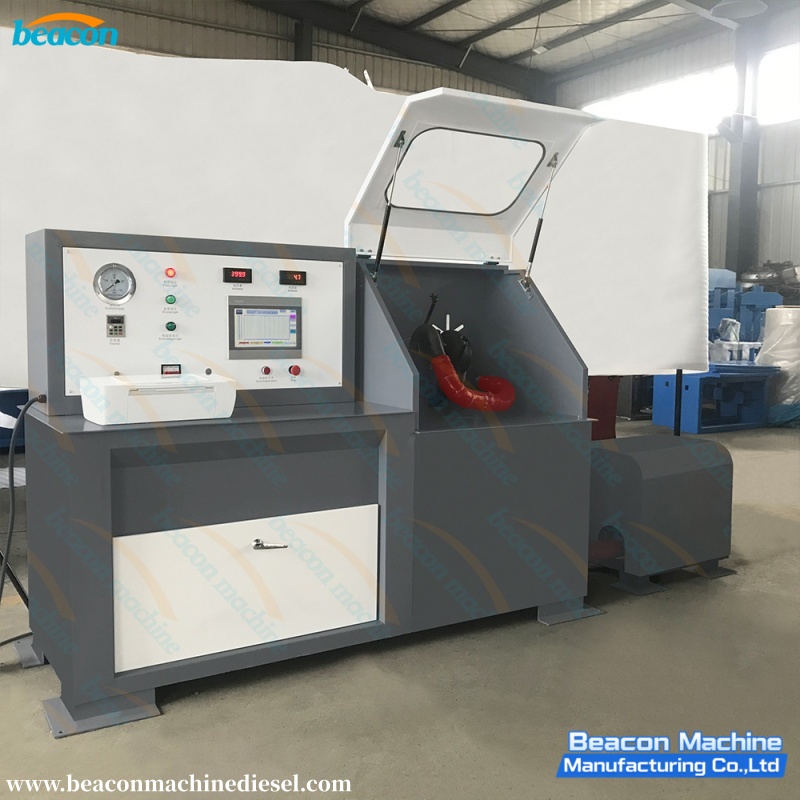

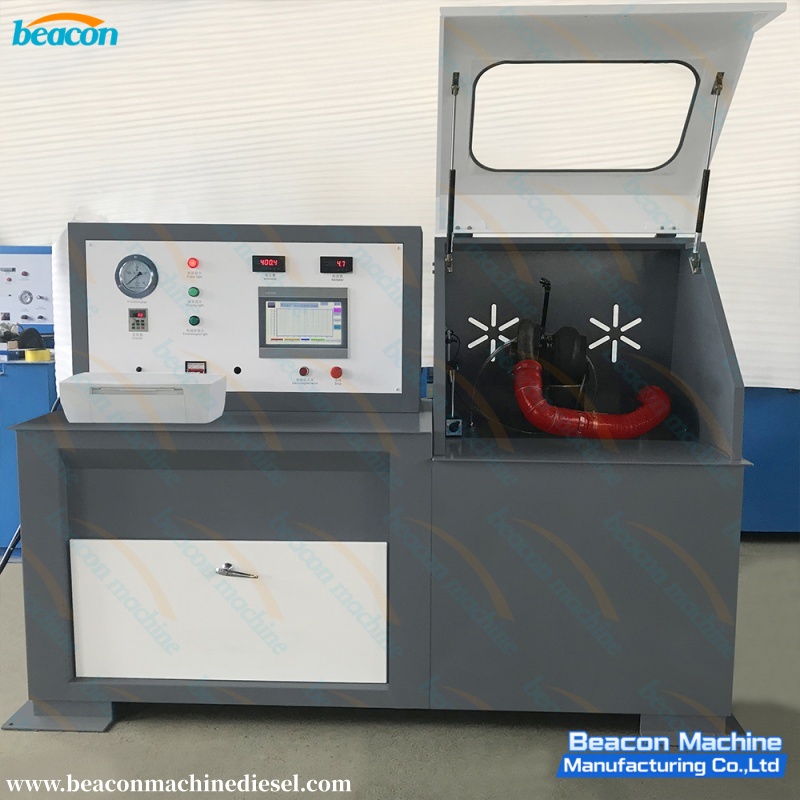

   BCZY-2C Turbocharger Test Bench is an advanced diagnostic system designed for the dynamic performance testing of various engine turbochargers. Utilizing a high-pressure airstream generator and variable frequency control, it simulates engine operating conditions to measure critical parameters such as boost pressure, air mass flow, lubrication status, and turbine speed. With a robust 7.5KW power output and a maximum air flow of 1500m³/h, this machine ensures precise data analysis for turbocharger maintenance and manufacturing.

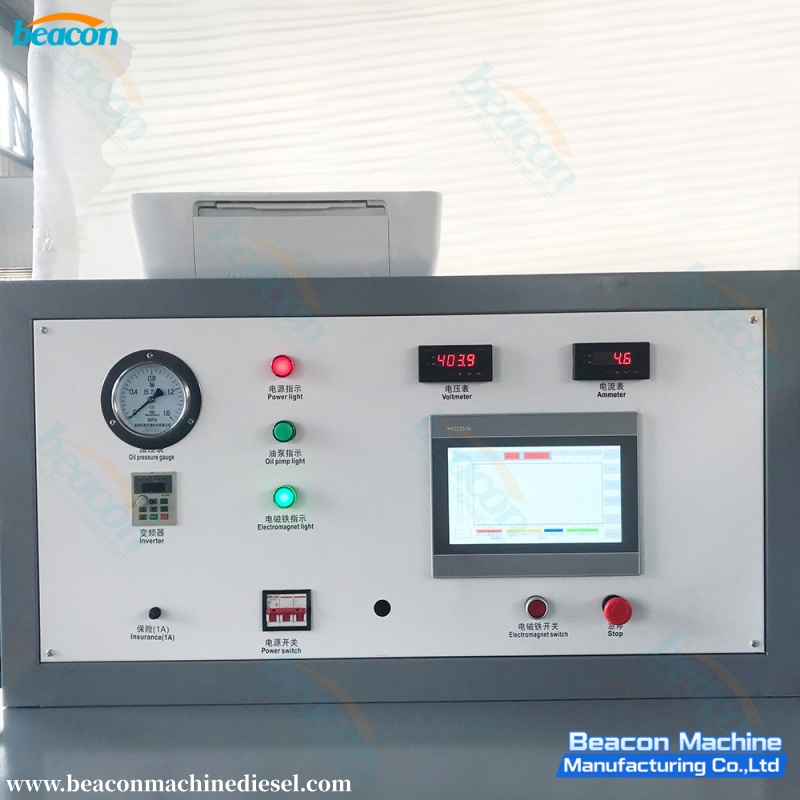

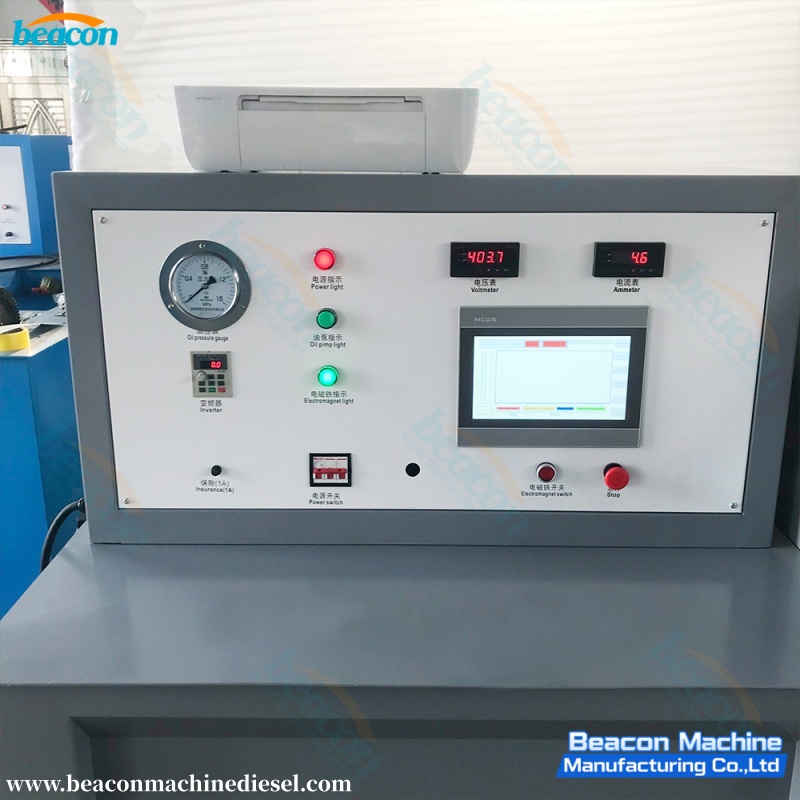

   Dual Operation Modes: Supports both Manual control for specific troubleshooting and Automatic testing for standardized efficiency. Intelligent Analysis: Equipped with a touch screen that displays real-time data, generates test curves, and performs automatic pass/fail judgments based on the boost ratio. Dynamic Testing: Capable of measuring inlet/exhaust pressure and turbine speeds up to 20,000 r/min with high-precision sensors. Lubrication Protection: Features an independent oil pump system (0.6Mpa) to pre-lubricate the turbocharger, ensuring safety during testing. Convenient Mounting: Uses an electromagnet system for quick and secure installation of the turbocharger during tests.
