C45A Automatic Brake Disc and Drum Mini Lathe Machine


   C45A Automatic Brake Disc and Drum Mini Lathe Machine

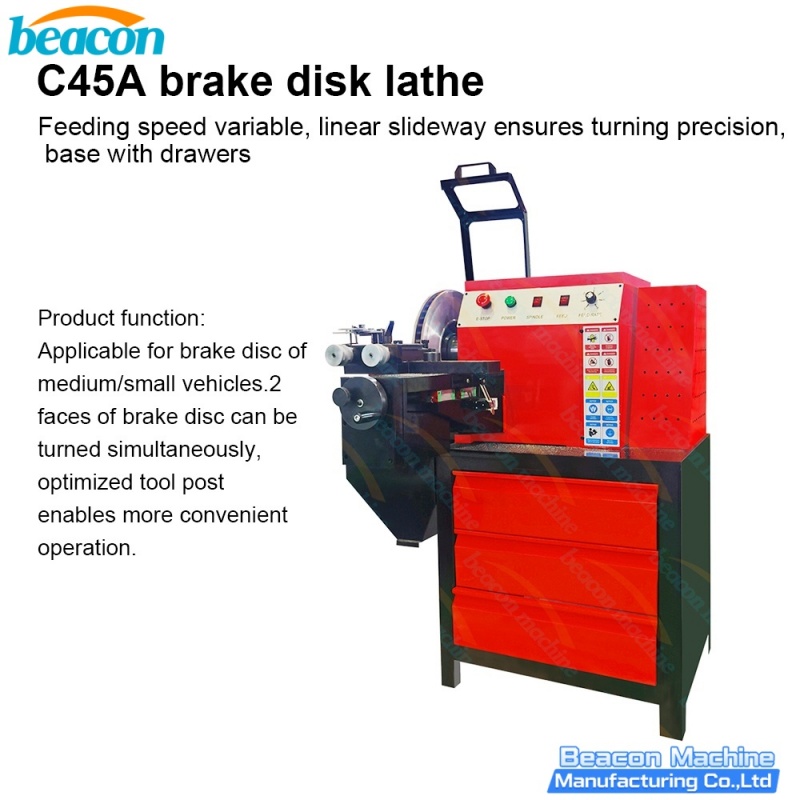

The C45A Brake Disc Lathe is a professional-grade machine designed specifically for the maintenance of brake discs on medium and small vehicles. Unlike standard entry-level lathes, the C45A is engineered with a high-precision linear slideway system , ensuring exceptional stability and smoothness during the cutting process. It features an optimized tool post design that allows for the simultaneous turning of both sides of the brake disc, guaranteeing perfect parallelism and significantly reducing operation time. The machine comes mounted on a sturdy industrial base cabinet, providing a complete workstation solution.

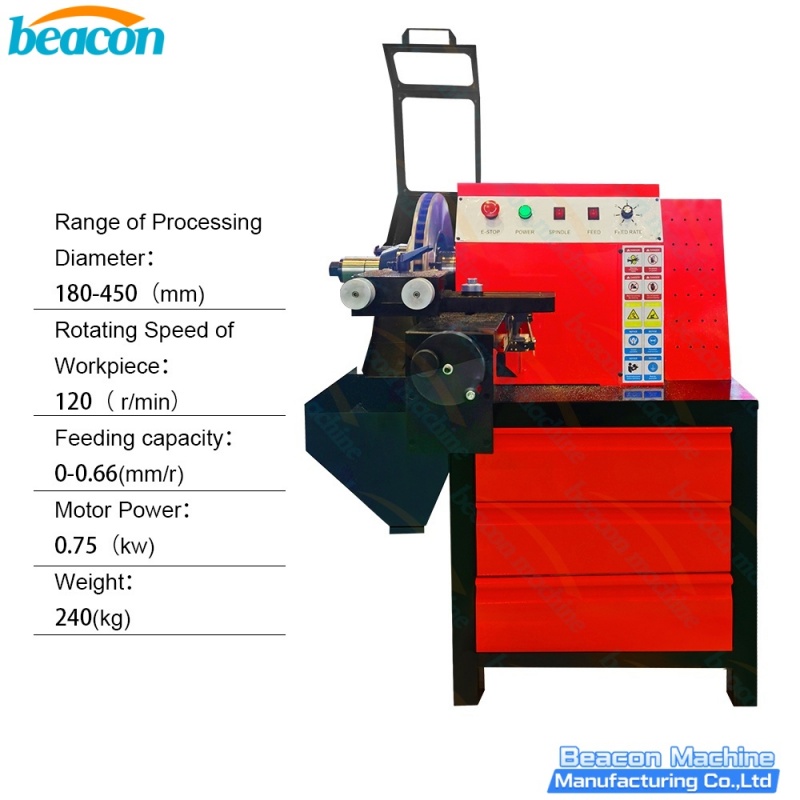

    High Precision Structure: Built with a linear slideway (linear guide rail) instead of traditional tracks, ensuring long-term accuracy, reduced friction, and superior surface finish on the brake disc. Double Efficiency: Capable of turning two faces of the brake disc simultaneously . This ensures the disc thickness is uniform and eliminates thickness variation (DTV) issues. Optimized Operation: The tool post is designed for quick setup and adjustments, making it user-friendly for mechanics. Variable Feeding: Features a variable feeding speed (0-0.66 mm/r), allowing operators to adjust the finish quality based on the disc material. Integrated Workstation: Unlike bench-top models, the C45A includes a heavy-duty base with drawers , providing convenient storage for tools, adapters, and chips, keeping the workshop organized.
