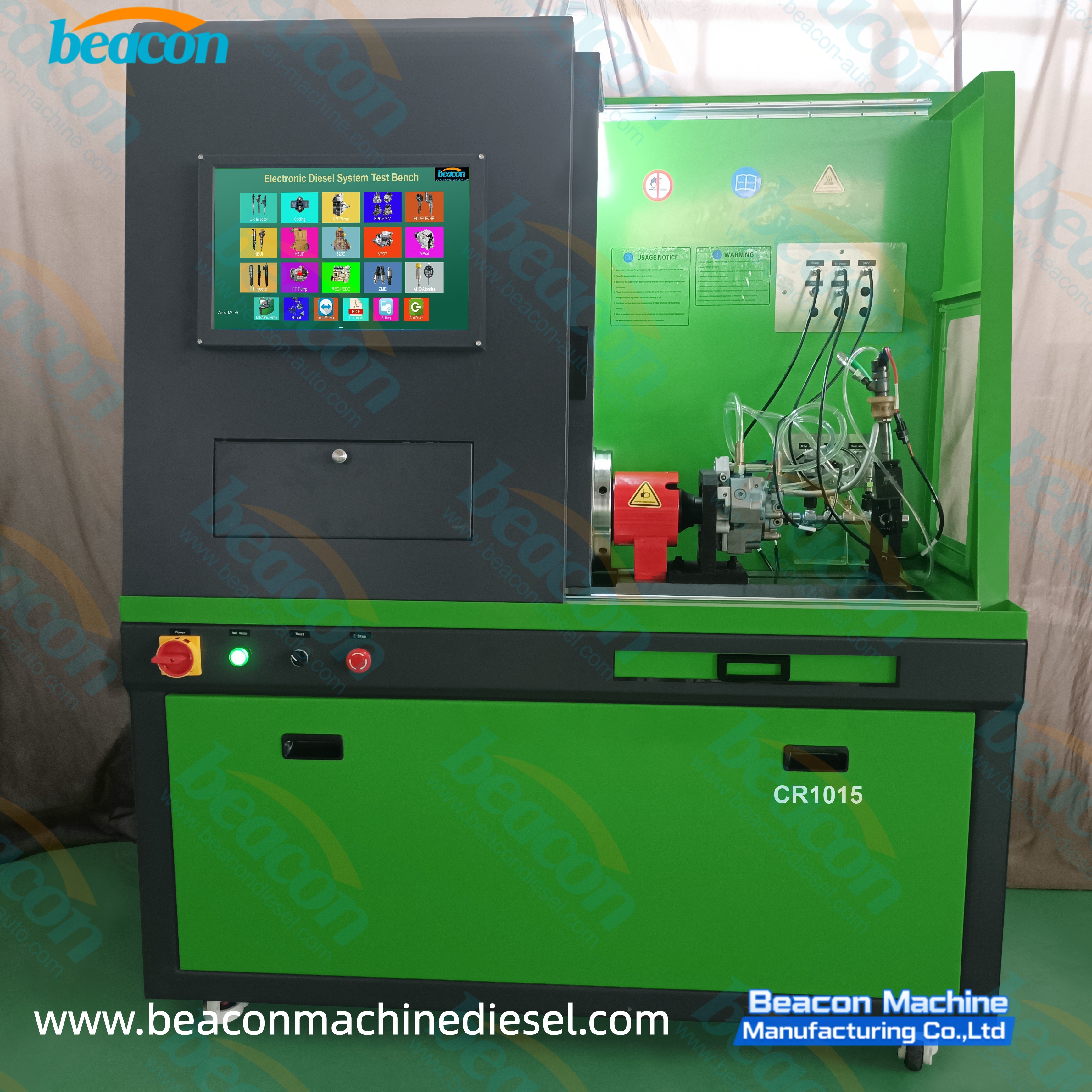

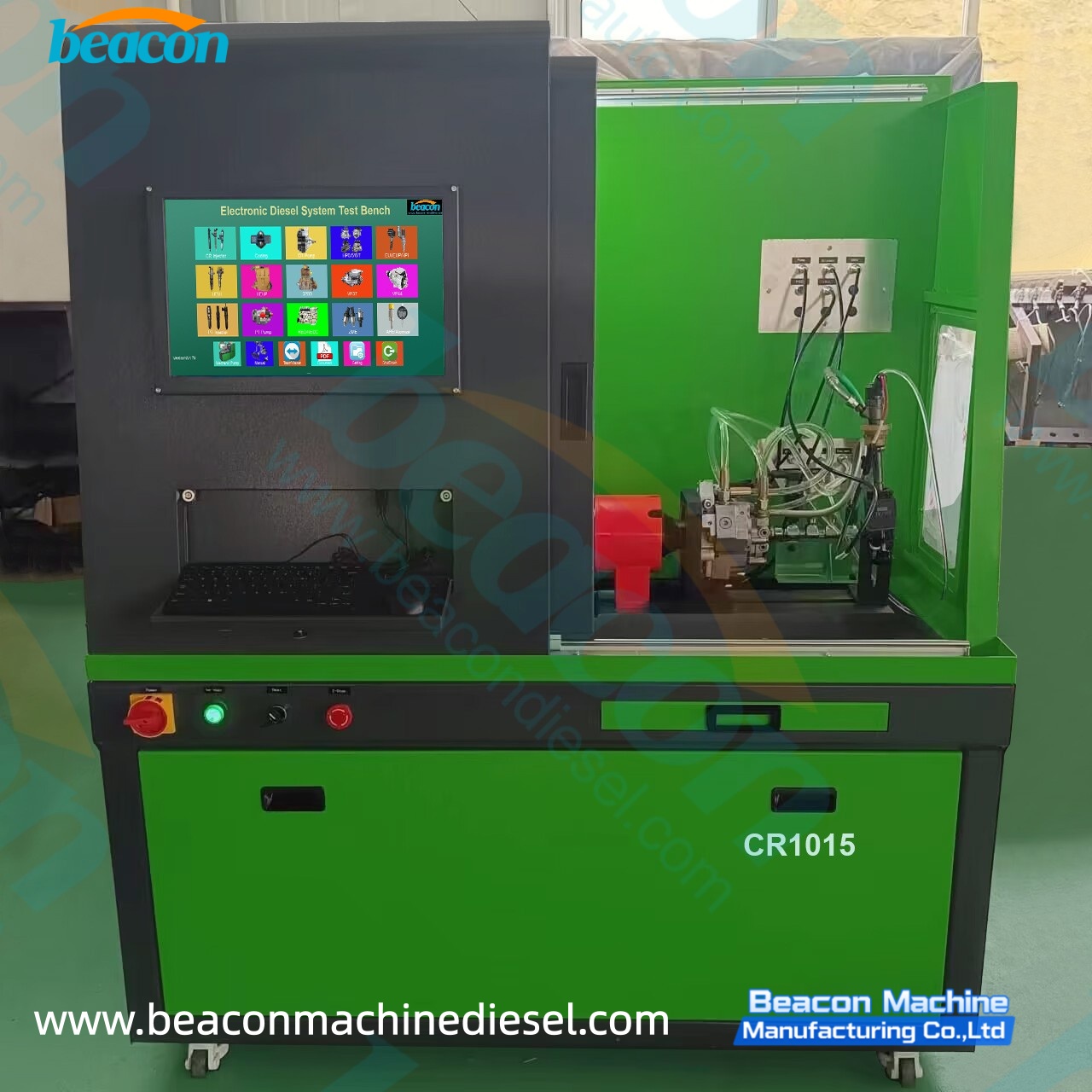

CR1015 HEUI EUI EUP CAMBOX Common Rail Injector Pump Calibration Machine

   CR1015 HEUI EUI EUP CAMBOX Common Rail Injector Pump Calibration Machine
  Diesel Fuel Injector Pump Test Bench CR1015 Common Rail Injection HP0 Pump Calibration Machine The function of CR1015 high-pressure common rail electronic control comprehensive performance test bench is to imitate the working conditions of diesel engine ECU (Engine Control Unit), while providing control signals for common rail systems such as Bosch and Delphi, driving high-pressure common-rail fuel pumps and high-pressure common-rail injectors. Work; the drive signal parameters can be set and saved by the user according to their actual conditions, which is convenient for maintenance personnel to judge and repair the working status of the high-pressure common rail system.

(1) Integrated automatic operation, including test bench speed, fuel rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results.
(2) It can test solenoid valve type or piezoelectric crystal type injectors, common rail high pressure pumps from manufacturers such as Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, Beiyou, and heavy oil. (Note: some functions Optional)
(3) It can test Bosch, Caterpillar, Cummins, Delphi, Nanyue Hengyang, Wittur and other unit pumps and pump nozzles, including Delphi E3 dual solenoid valve pump nozzles (optional);
(4) It can test HEUI medium pressure common rail injectors and actuation pumps (optional);
(5) Caterpillar 320D high pressure pump can be tested (optional);
(6) VP37, VP44, RED4, Denso V3/V4/V5 oil pumps can be tested (optional);
(7) HPI injector and PT pump (optional) can be tested;
(8) The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard;
(9) The database is fully open, and the part number can be increased. parameter
