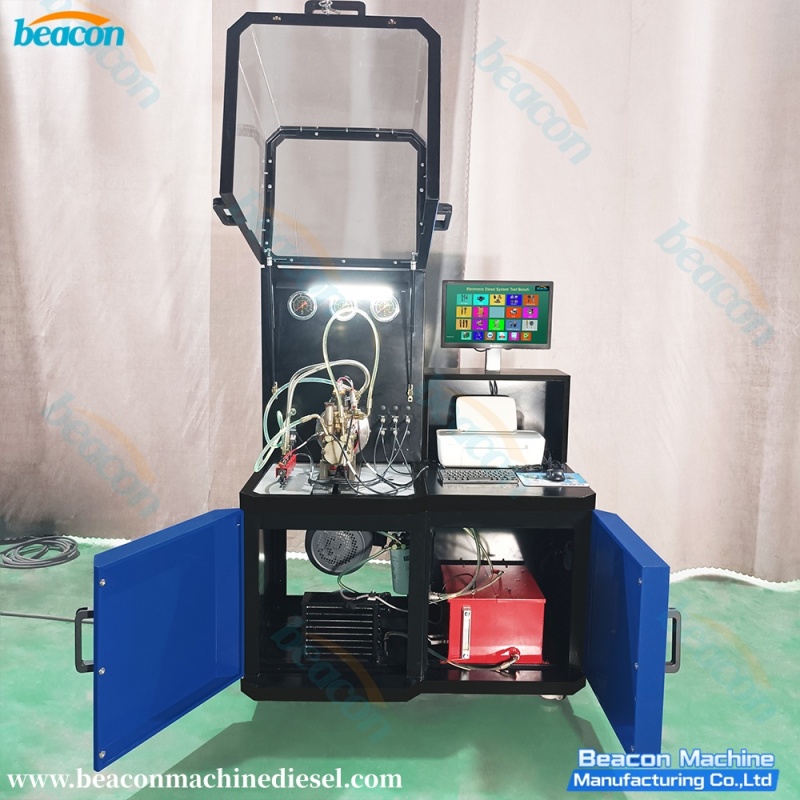

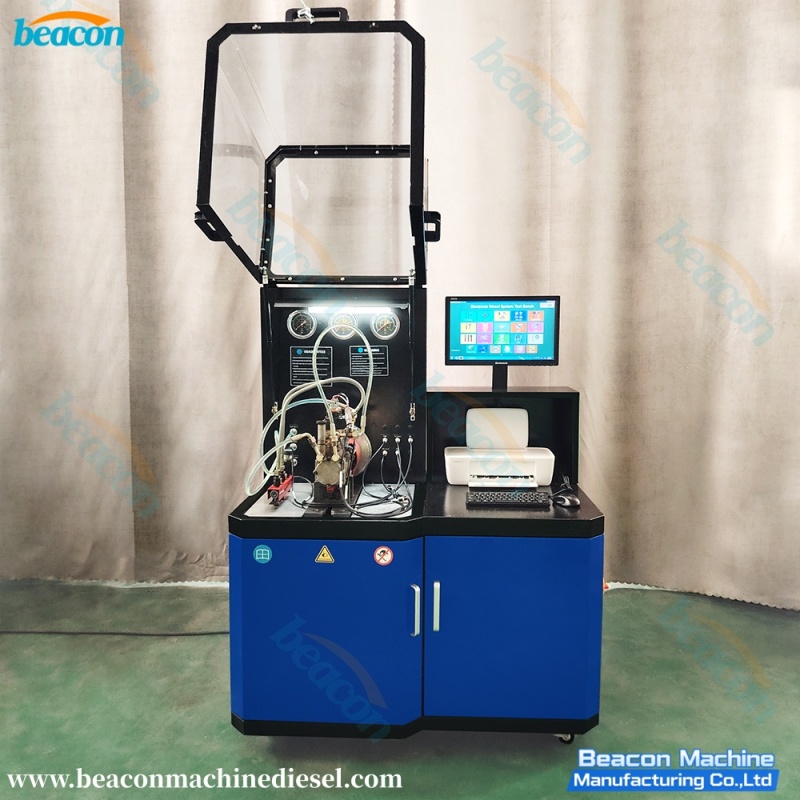

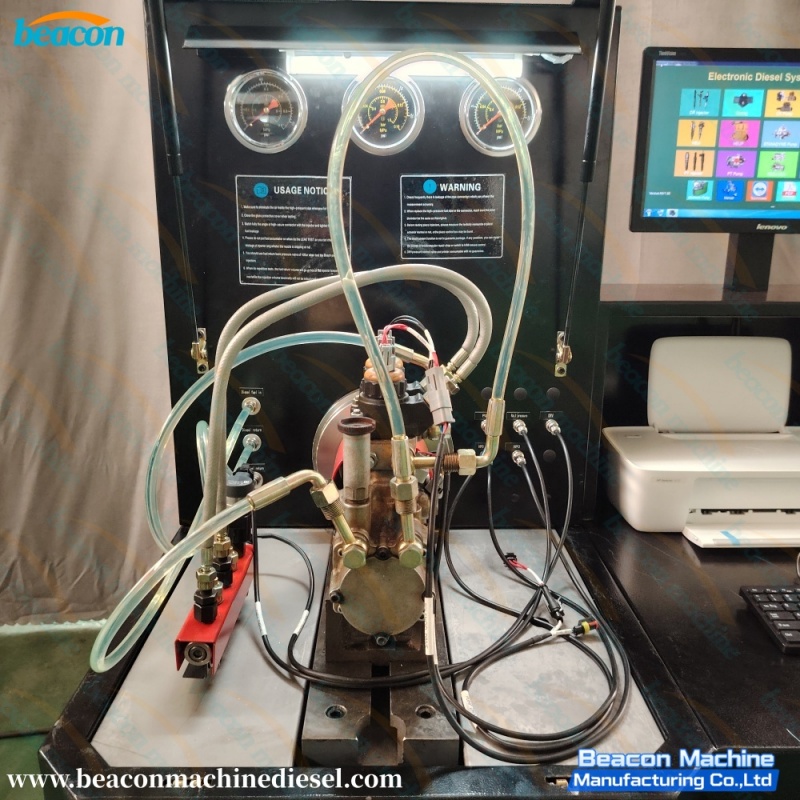

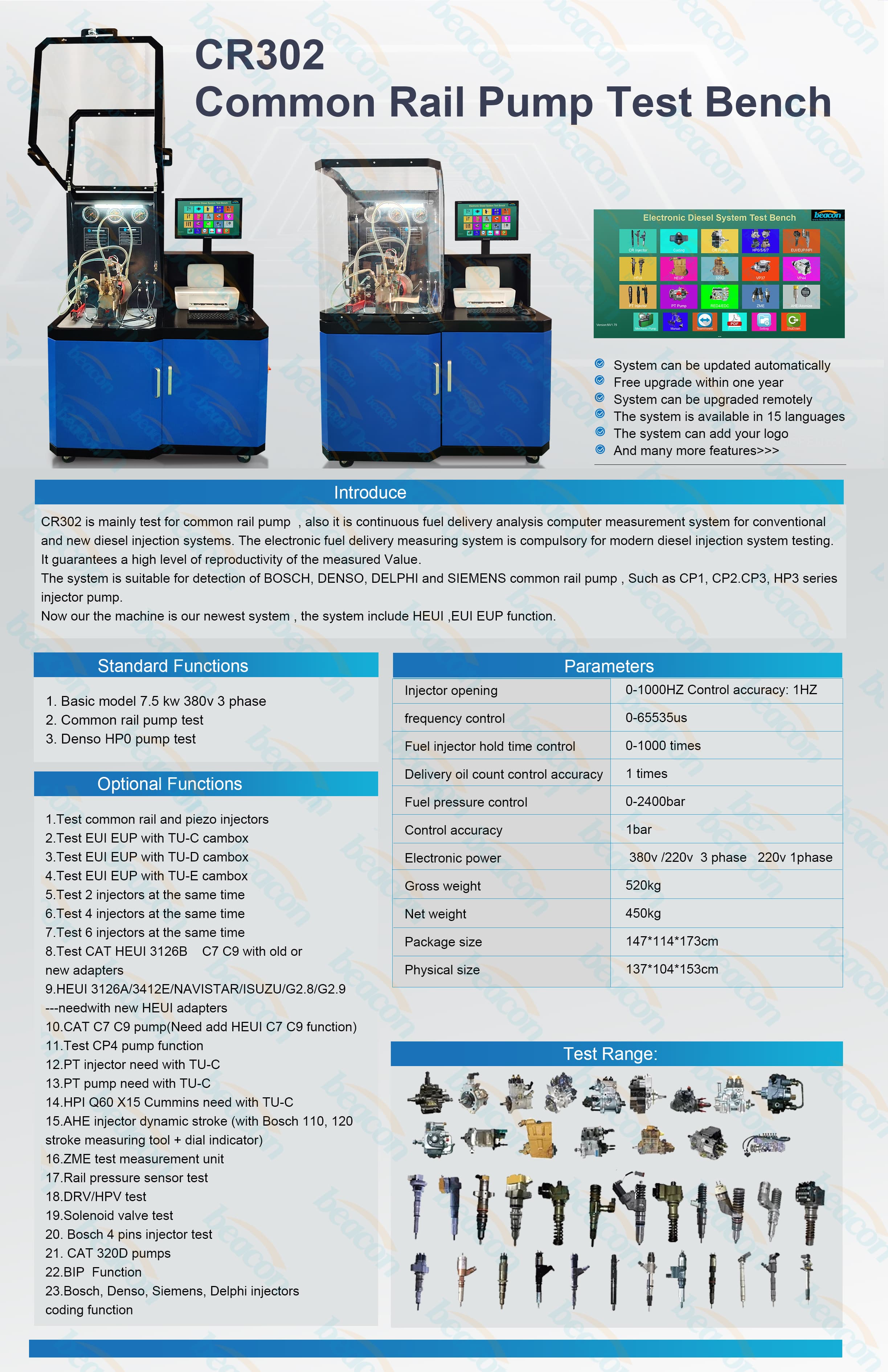

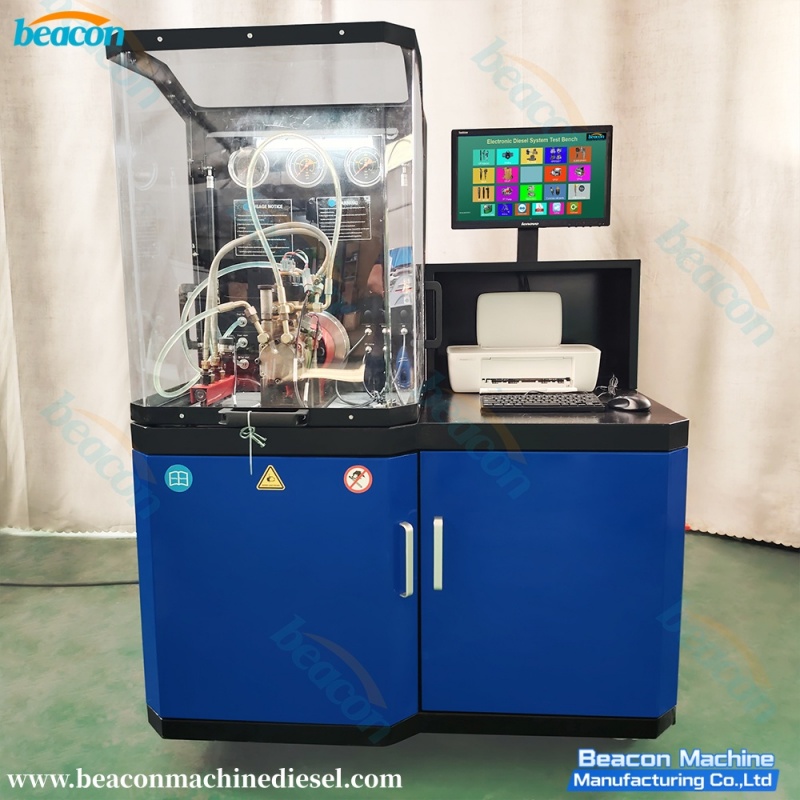

CR302 Common Rail Diesel Fuel Injection Pump Test Machine Injector Pump Test Benches

     CR302 Common Rail Diesel Fuel Injection Pump Test Machine Injector Pump Test Benches
CR302 is mainly test for common rail pump, Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured Value. Now our the machine is our newest system,the system include huei ,eui eup function. Temperature (running) *************－10～50°C (14～122°F) Temperature (non-operating)************－20～70°C (-4～158°F) Relative humidity (running) ********* 15%～95% at 40 ℃ (no frost) Relative humidity (non-operating) ****** 90% at 65 ℃ (no frost)

Basic functions
1. Common rail pump test
2. Denso Hp0 pump test
Optional features
1.Common rail fuel injectors test
2. Piezo injector test
3.Test CAT HEUI 3126B c7 c9 with old or new adapters
4.Test eui eup
5.Test 2 / 4 / 6 fuel injectors
6. HEUI 3126A/3412E/NAVISTAR/ISUZU/G2.8/G2.9 test
7 CAT C7 C9 pump
8 Test CP4 pump function
9 PT injector need with TU-C
10 PT pump need with TU-C
11 HPI Q60 X15 Cummins need with TU-C
12 AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial indicator)
13 Delphi E3 double pulse control system
14 ZME test measurement unit
15 Rail pressure sensor test
16 DRV/HPV test
17 Solenoid valve test
18 Bosch 4 pins injector test
19 CAT 320D pumps
