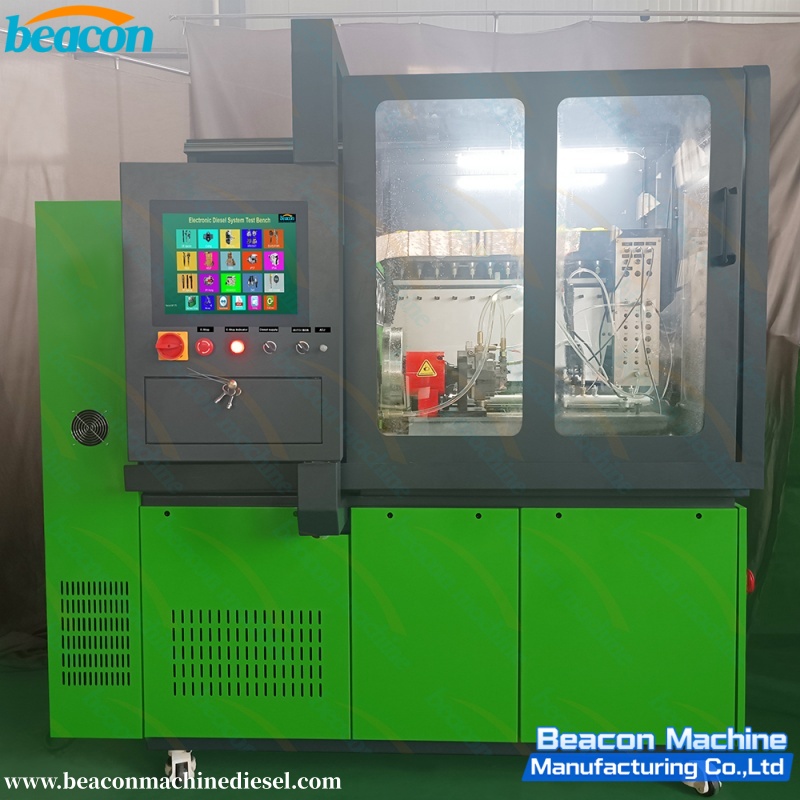

CR815S Common Rail Injector Diesel Fuel Pump Test Bench

CR815S Common Rail Injector Diesel Fuel Pump Test Bench

Product Introduction
CR815S Common Rail Injector Diesel Fuel Pump Test Bench is a professional and high precision testing solution designed for both common rail injectors and diesel fuel pumps. It integrates stable pressure supply, accurate flow measurement, leakage detection, atomization inspection and full calibration functions. Ideal for diesel repair workshops, fuel system service centers and remanufacturing plants, it ensures reliable performance, efficient operation and professional maintenance for modern diesel fuel injection systems.

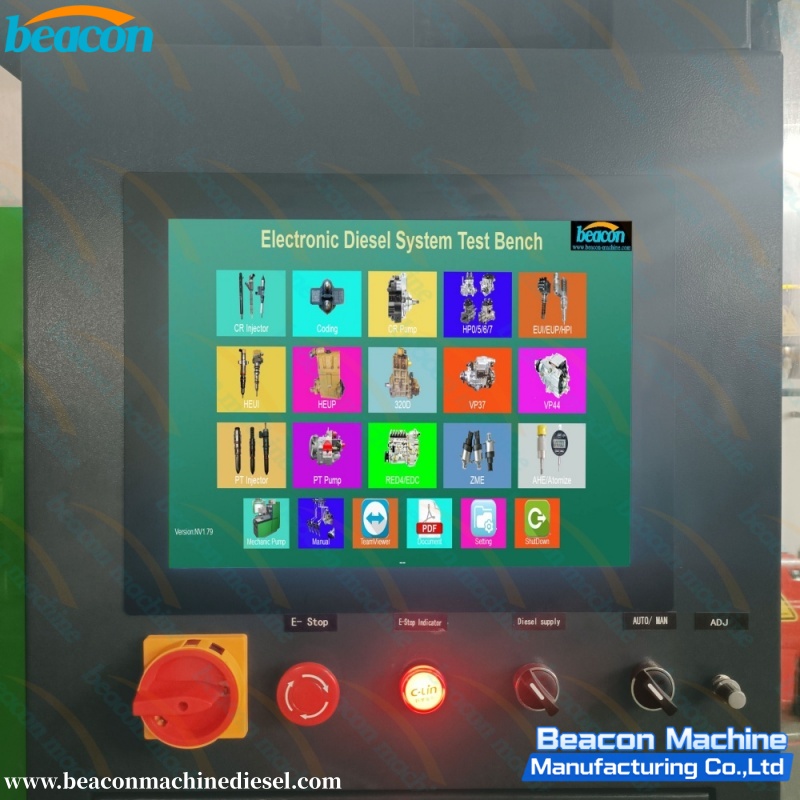

1. Industrial computer Windows operating system
2. With the database, you can search, store, modify test data, and generate new data.
3. Automatic measurement and generate QR code
4. Closed-loop control, which can automatically adjust the control rail pressure, the rail pressure is stable, and the fluctuation value is ± 1 Mpa.
5. The display rail working pressure is 200Mpa, the maximum pressure is 250Mpa
6. Common rail injection quantity, injection time, number of injections can be freely changed
7. With ultra high pressure protection, the rail pressure is more than 250Mpa will automatically shut down
8. Automatic control of oil temperature ± 40 ℃

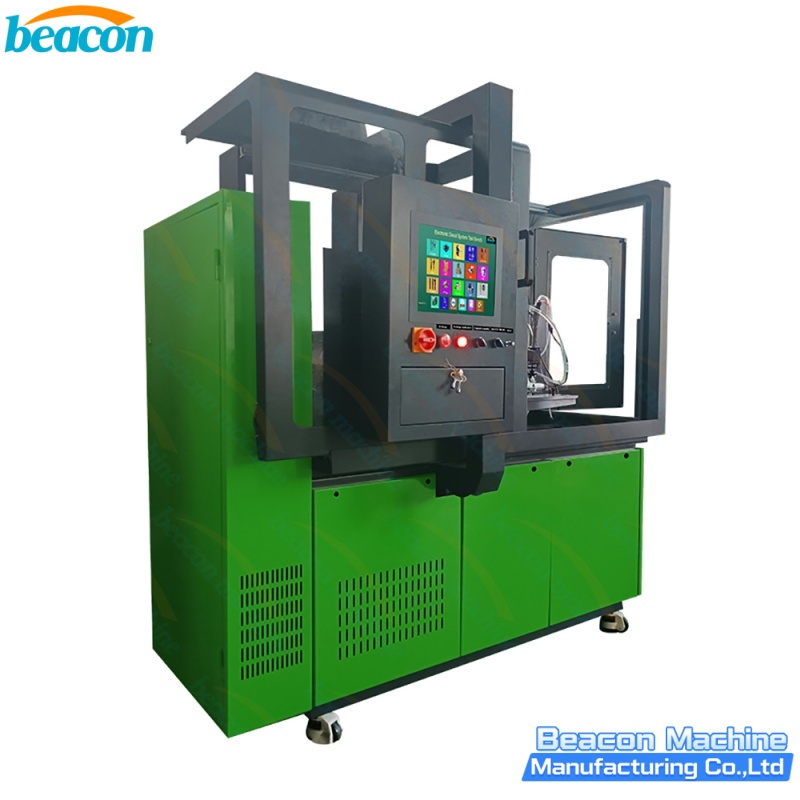

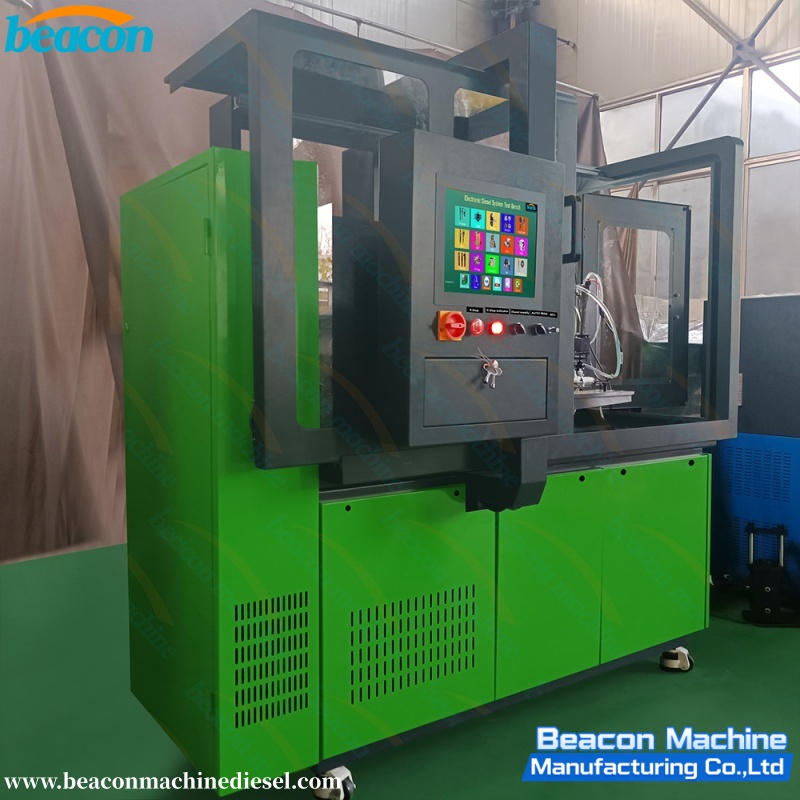

9. With protective glass door, safe operation and easy observation.
10. Can detect HEUI engine oil circuit
11. Oil temperature control by compressor cooling (optional)
12. Internet connection support for remote update
13. With injector response time detection (optional)

CR815S Common Rail Injector Diesel Fuel Pump Test Bench

Product Functions
(1)Test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, solenoid or piezo common rail injector and pump(Included the pump with 2 ZME metering units).
(2)Injector coding can be generated, including Bosch IQA / IMA / ISA, Denso 16/22/24/26/28/30/32QR, Delphi I2C / I3C, Siemens IIC and Cummins XPI(optional);
(3)Can test Bosch, Caterpillar, Cummins, Delphi EUI and EUP, including Delphi E3 double solenoid EUI and Cummins M11 double pulsing EUI (optional);
(4)Test HEUI injector and HEU pump (optional);
(5)Test Caterpillar 320D pump (optional);
(6)Test VP37,VP44,RED4,Denso V3/V4/V5 pump (optional);
(7)Test Cummins HPI injector,PT pump (optional);
(8)Test Injector response time,EUI/EUP BIP；
(9)Test injector resistance and indctance.
(10)Test the armature lift of the injector solenoid valve (AHE) (optional).
(11)The test plan is consistent with the original data, and the test accuracy reaches the original factory standard;
(12)The database is fully openthe part number can be increased.
(13)Automatic network upgrade, test data and functions are kept up to date
