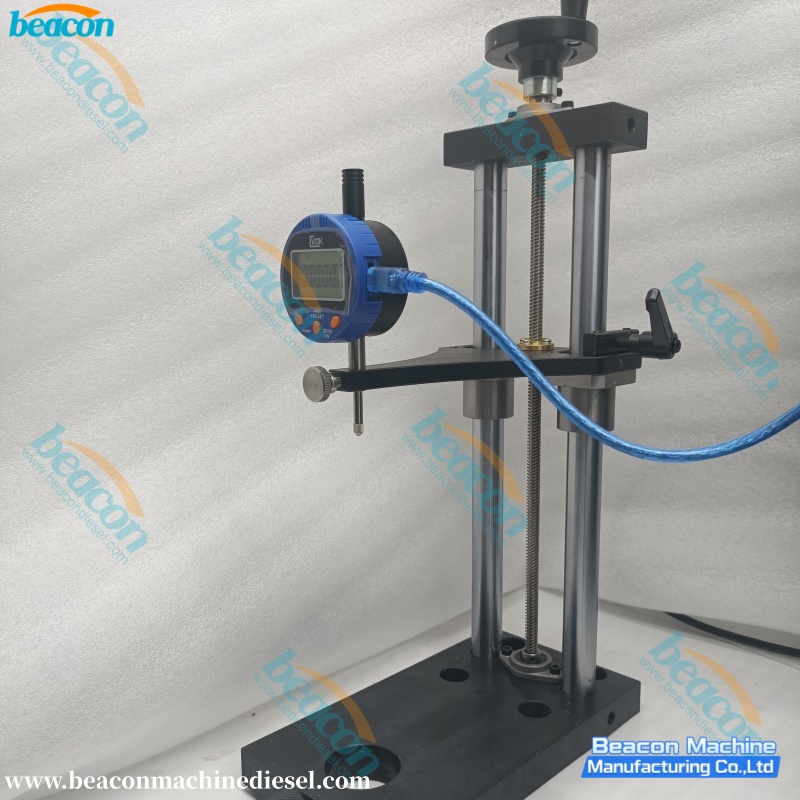

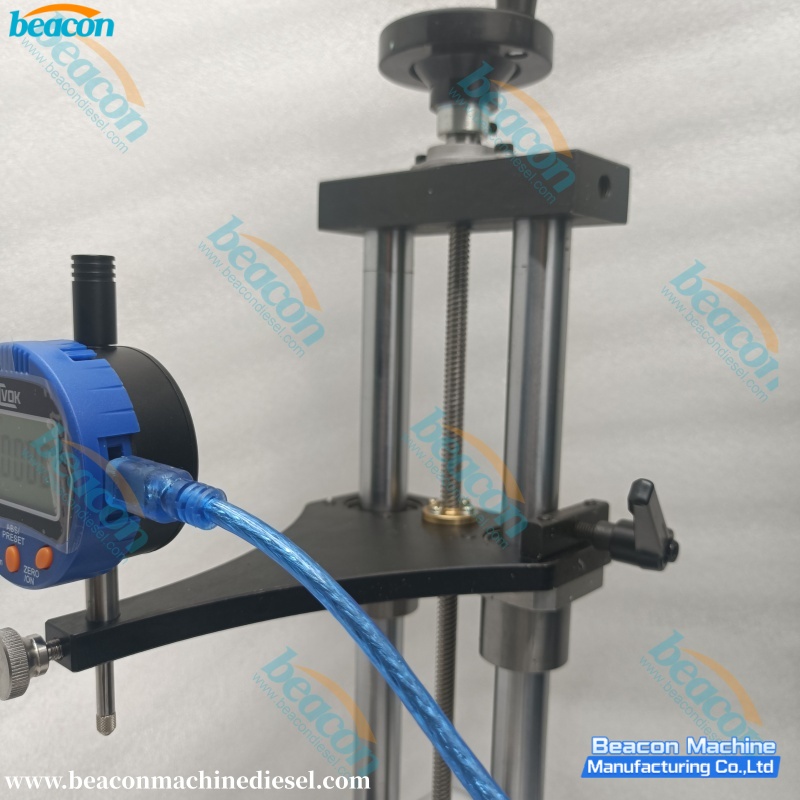

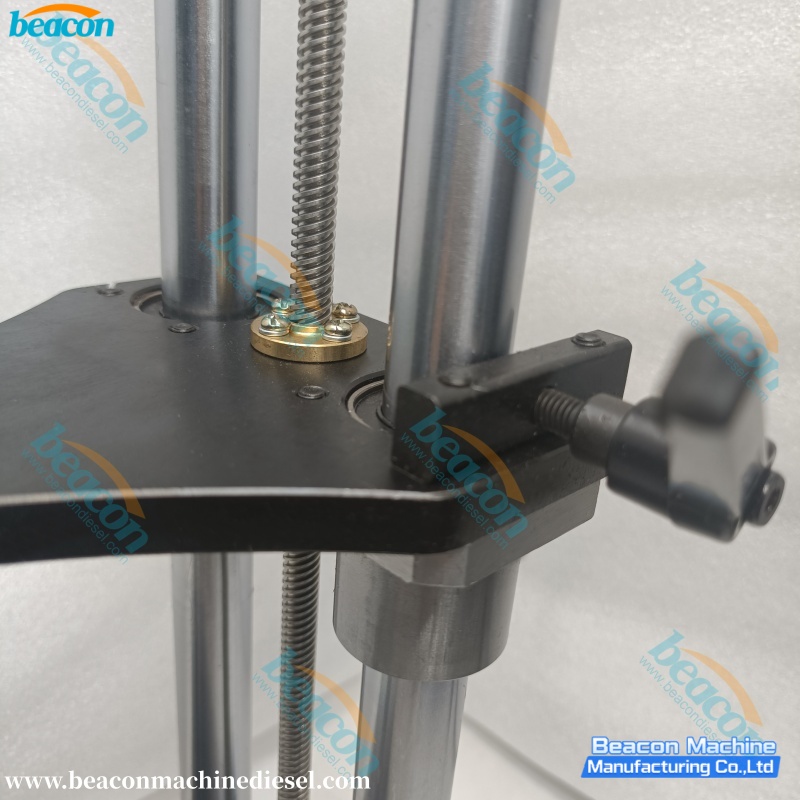

CRM920C Stage 3 Diesel Common Rail Injector Repair Tool

CRM920C Stage 3 Diesel Common Rail Injector Repair Tool
Product Introduction
CRM920C Common Rail Injector stroke measuring system, which includes almost all common rail injectors stroke measuring standard data inside. Suitable for BOSCH, CAT, DENSO, DELPHI, SIEMENS injectors and so on .
It can test:
1. Adjust Needle Lift
2. Adjust Needle Opening Pressure
3. Adjust Total Lift of Armature Assembly
4. Adjust Actual Lift of Armature Assembly
5. Adjust Solenoid Air Gap
6. Adjust Solenoid Spring Compression
7. Driving Armature
Common Rail Injector Repair Stage 3 Rebuild Injector after Component Being Replaced:
Injector Critical dimensions are accurately controlled by using the calibration shims or spacers of exact thicknesses in the injector during injector rebuild to meet Bosch spec tolerance of 1um. 1:Intuitive, step-by-step instruction to direct user to rebuild injector Measure thickness of calibration shims Measure dimension of injector components Provide the required thickness of calibration shims
2:Complete database to cover Bosch common rail injectors CRI 1, CRI 2, CRI 3 for Automotive engine CRIN 1, CRIN 2 for Commercial vehicle engine

Specifications：

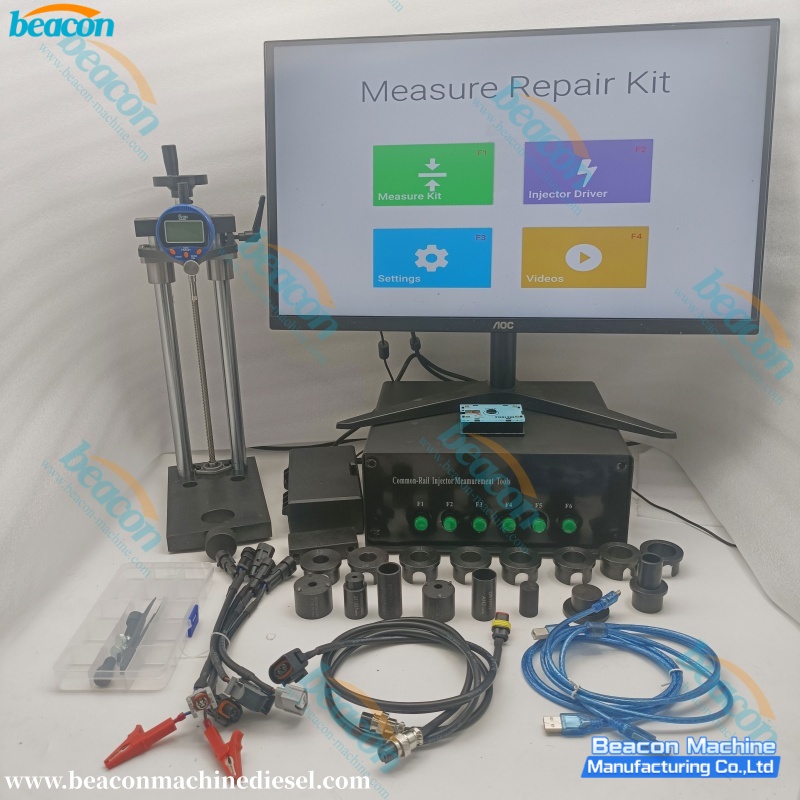

* Installation set which facilitates disassembling and assembling of all kinds of injector.
* Calibration set to read the injector size values and adjust them.
* Electronic unit to trigger the injector coil.
* Shim set to be used for injector adjustment.
* Digital microscopes to observe damages of injector parts clearly.
* Torquemeter to tighten injectors in accuracy value.
