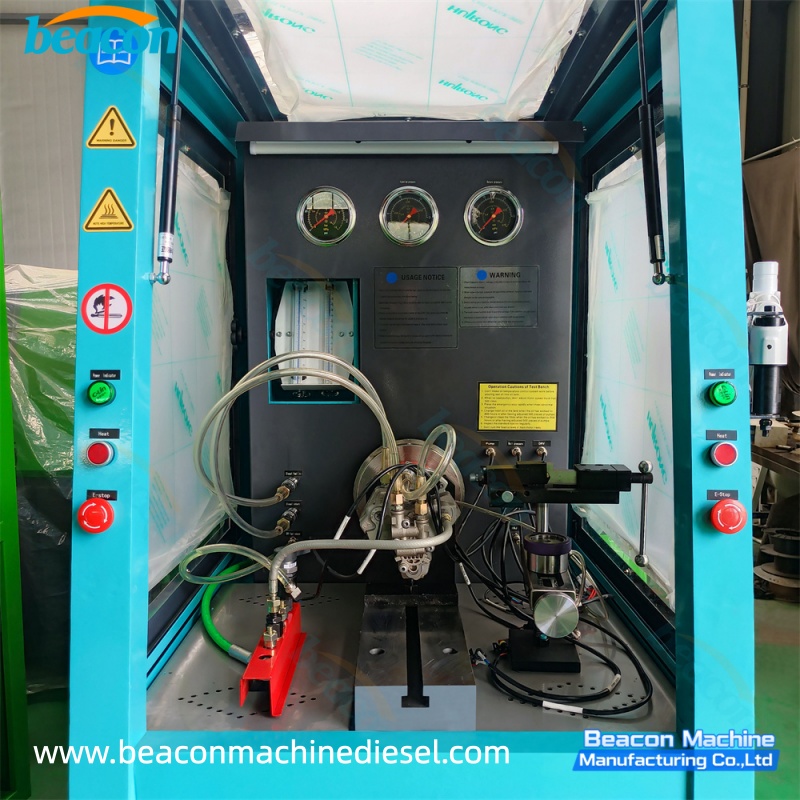

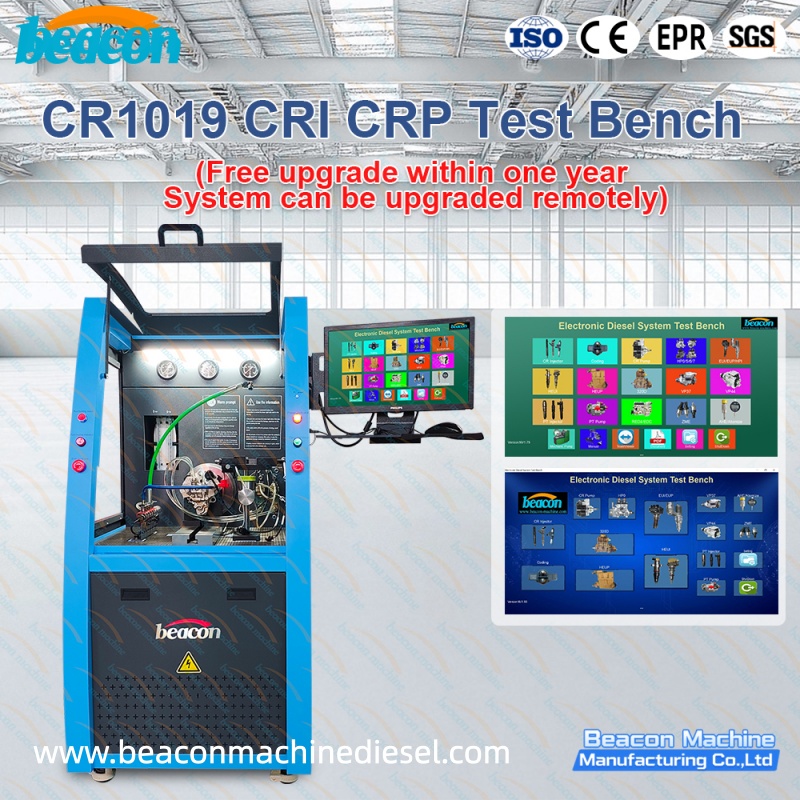

Cr1019 Cr Diesel Fuel Injector Pump Flow Test Bench

      CR1019 is mainly test for common rail pump  Injector EUI EUP HEUI, Also it is continuous fuel delivery analysis computer measuring system for conventional and new diesel injection systems.
The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.
It guarantees a high level of reproductivity of the measured Value. Now our the machine is our newest system , the system include heui ,eui eup function .

Main function

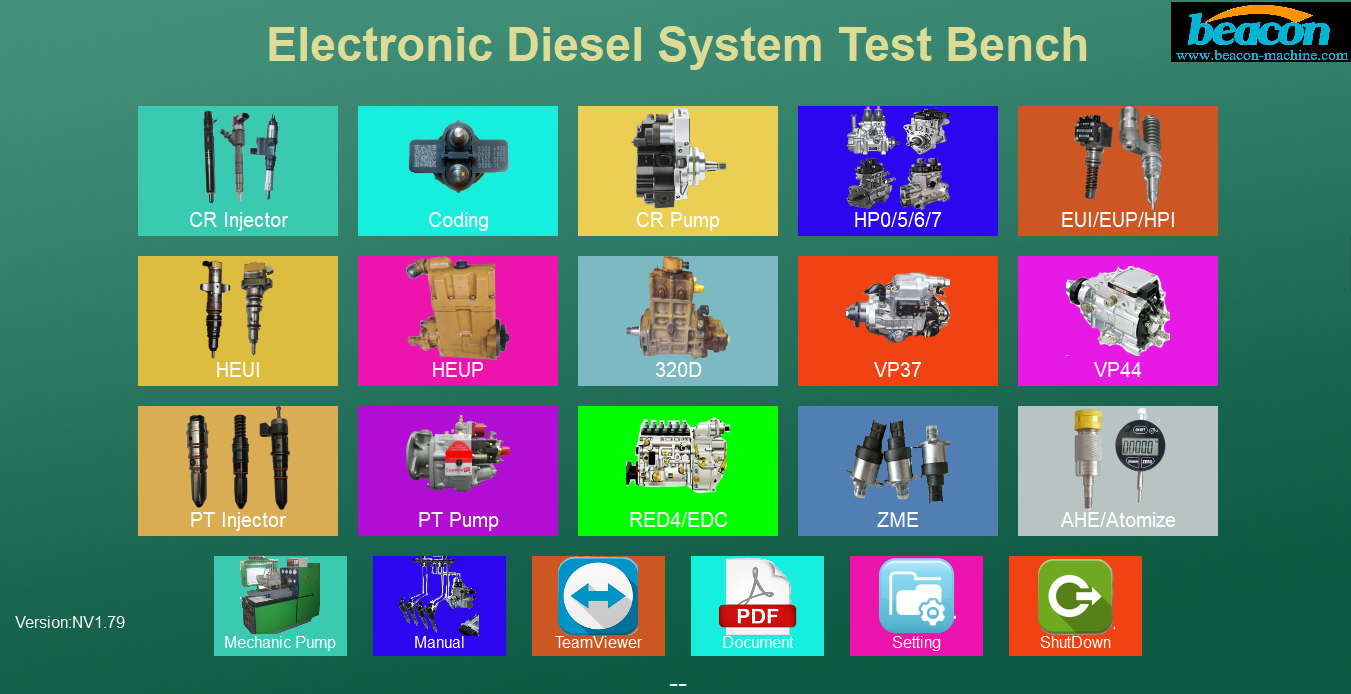

(1)Integrated automatic operation, including test bench speed, rail rail pressure, flow measurement, report analysis, etc., one-button operation, the measurement results can be obtained.
(2)Test Bosch, Delphi, Denso, Siemens, Caterpillar, Commins, solenoid valve or piezoelectric crystal injector, common rail high pressure pump.
(3)Can test Bosch, Caterpillar, Commins, Delphi, and  EUI and EUP, including Delphi E3 double solenoid valve EUI (optional);
(4)Test HEUI injector and actuating pump (optional);
(5)Test Caterpillar 320D high pressure pump (optional);
(6)Test VP37,VP44,RED4,Denso V3/V4/V5 pump (optional);
(7)Test Commins HPI injector,PT pump (optional);
(8)The test standard data is consistent with the original data, and the test accuracy reaches the original factory standard;
(9)The database is fully open, the part number can be increased.
(10)Automatic network upgrade, test data and functions are kept up to date;
(11)The injection response time can be tested;
(12)The fuel injector compensation code can be generated;
(13)Test injector resistance and inductance
