Cummins ISX/QSX-X15 Actuator Tester

Cummins ISX/QSX-X15 Actuator Tester

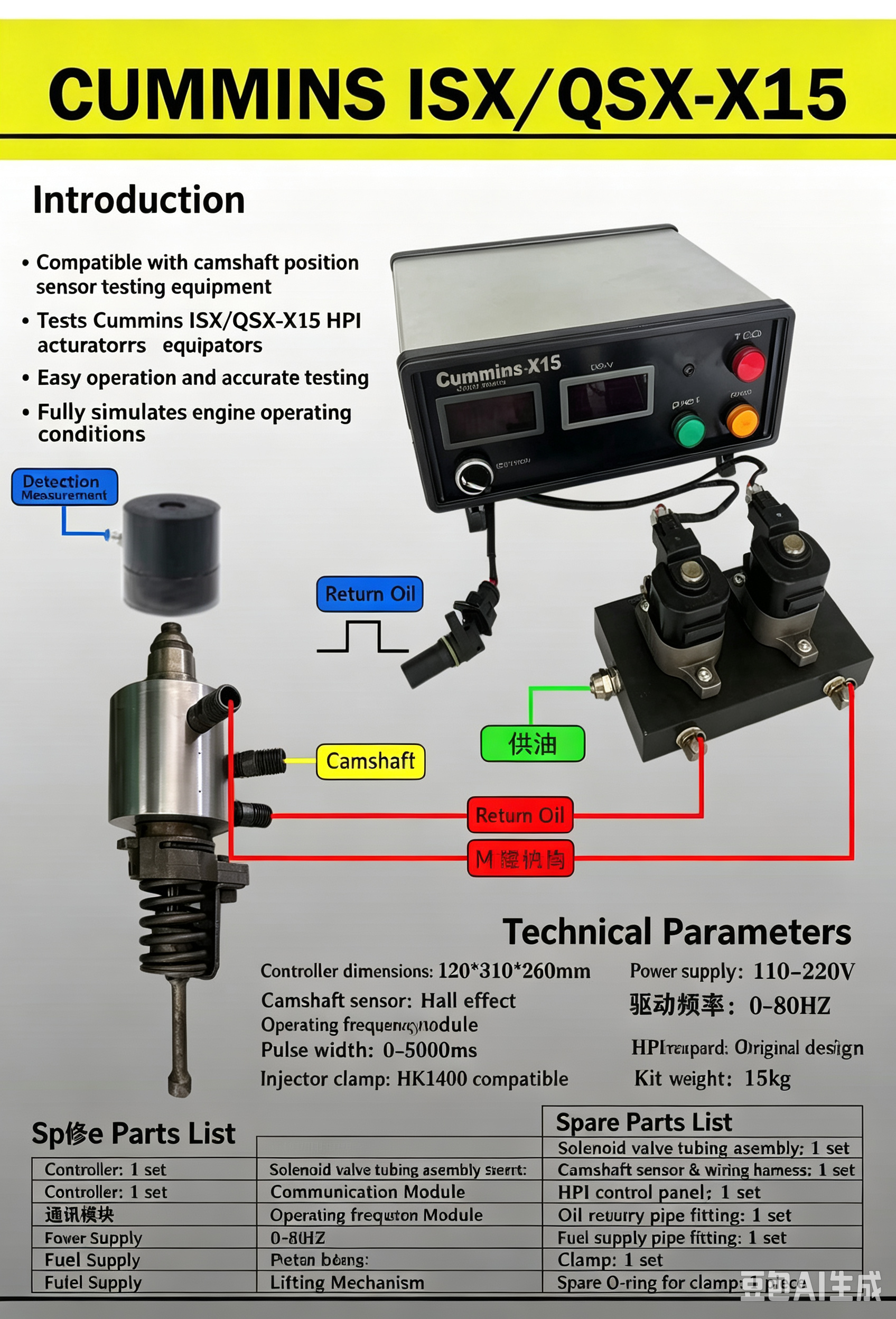

Cummins ISX/QSX‑X15 HPI Actuator Tester Kit, can be grafted to any cam‑box pump‑nozzle test equipment. For testing X15 injector and HPI actuator. Simulate real engine working condition, easy operation and accurate test results.

Product Introduction

This Cummins ISX/QSX‑X15 HPI Actuator Tester Kit can be adapted to existing cam‑box pump‑nozzle test benches. It is specially designed to test Cummins X15 injectors and HPI actuators. The unit fully simulates real‑world engine working conditions, delivers easy operation and highly accurate test readings for diesel repair workshops.

Key Features

• Compatible with most existing cam‑box pump‑nozzle test equipment

• Test Cummins X15 injectors and HPI actuators

• Fully simulate actual engine working condition

• Simple operation, stable & precise test performance

• Original‑design HPI control board, 110‑220V wide‑voltage power supply

• Comes with complete fixture, harness and pressure‑resistant tubing

Technical Parameters

• Controller Dimension: 120*310*260mm

• Drive Voltage: 110‑220V

• Camshaft Sensor: Electromagnetic Hall type

• Drive Frequency: 0‑80HZ

• Drive Pulse Width: 0‑5000ms

• HPI Control Board: Original vehicle design

• Injector Fixture: Matches HK1400

• Kit Weight: 15kg

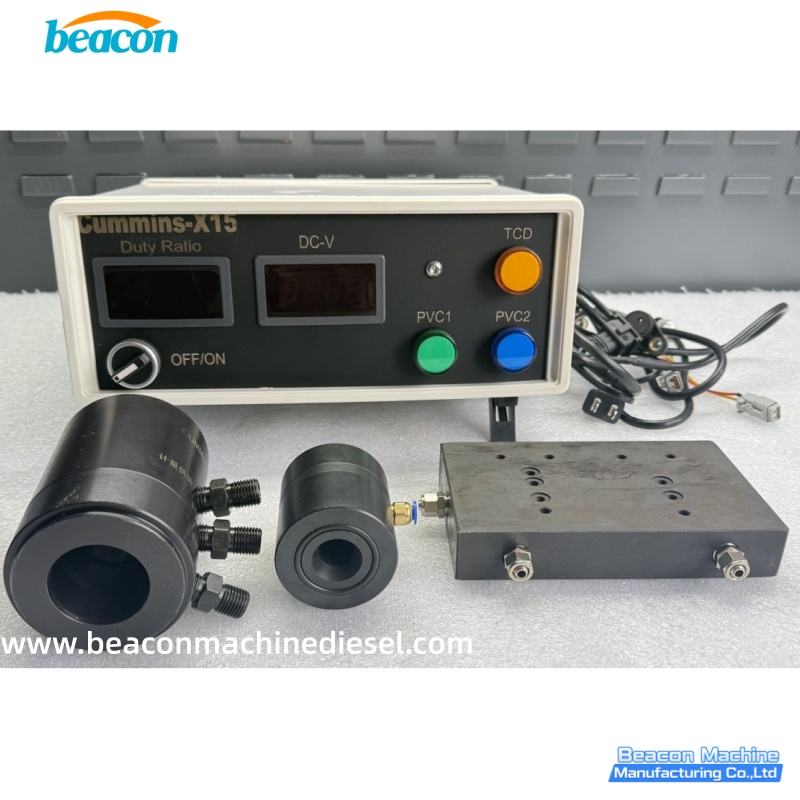

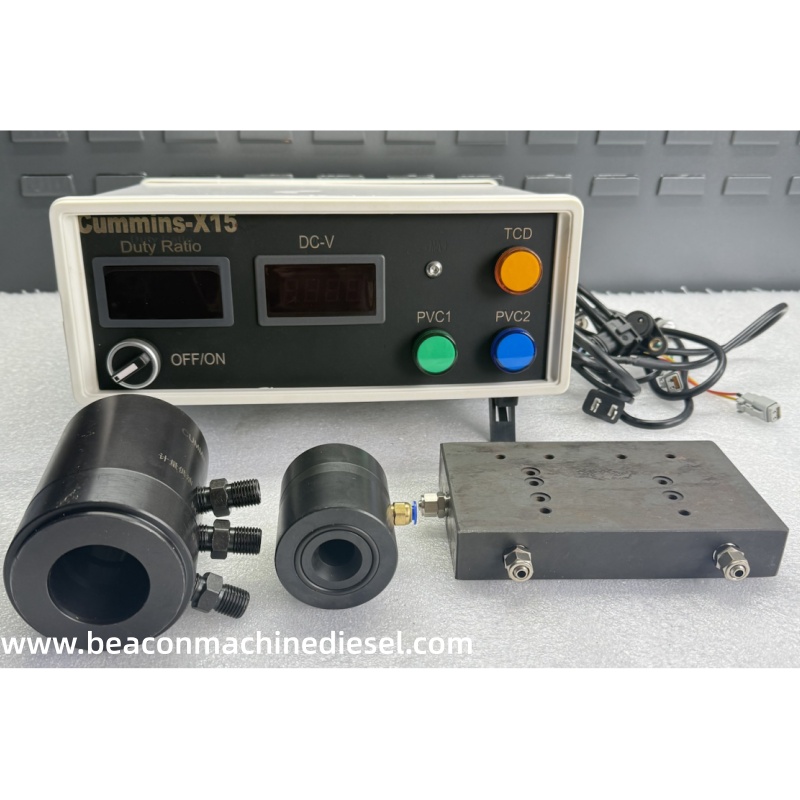

Kit Contents

• 1 × Main Controller

• 1 × Solenoid Valve Drive Harness

• 1 × Camshaft Sensor with Wiring Harness

• 1 × Injector Fixture

• 1 × Injector Oil Collector

• 1 × HPI Control Board (Valve not included)

• 5m × Φ6 pressure‑resistant tube

• 3m × Φ12 pressure‑resistant tube

• 1 × Spare rubber ring for fixture
