LCR03 Diesel Fuel Electronic Injector Capacitance Inductance Resistance Tester

LCR03 Diesel Fuel Electronic Injector Capacitance Inductance Resistance Tester

Product Description

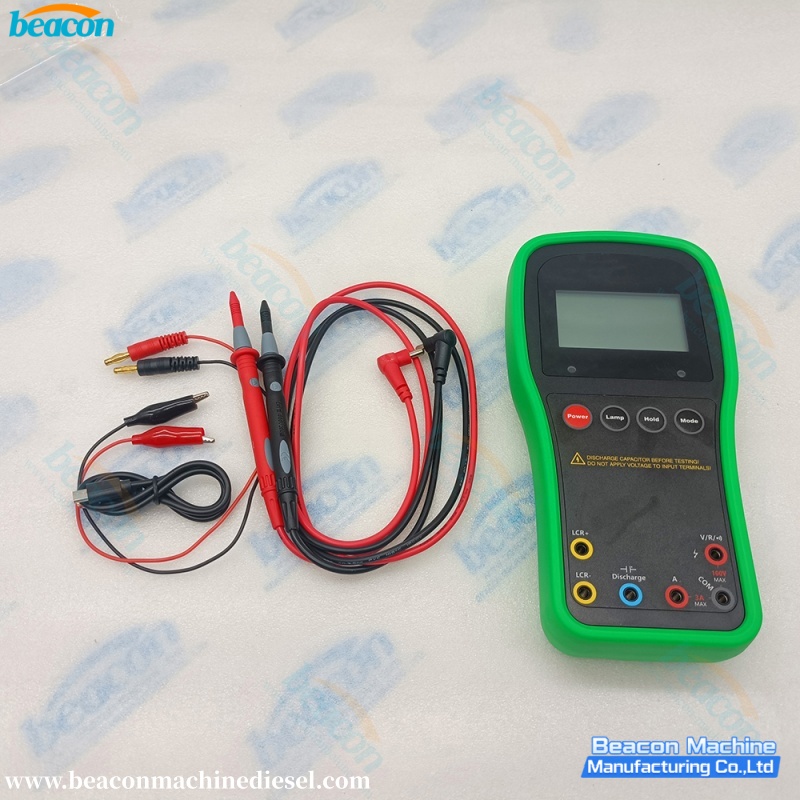

LCR03 Diesel Fuel Electronic Injector Capacitance Inductance Resistance Tester is a professional measuring instrument specially developed for diesel electronic injectors. It can accurately detect the capacitance, inductance and resistance of injector coils, helping users quickly judge the working status and performance of injectors. It is widely used in injector maintenance, overhaul and quality inspection, with stable data, high precision and easy operation, which is an essential tool for diesel injector maintenance.

LCR03 Diesel Fuel Electronic Injector Capacitance Inductance Resistance Tester

Product Functions
1.Smart measurement Intelligent measurement of quality factor, loss factor, phase angle and equivalent resistance.
2.Automatic measurement Automatic selection of series parallel measurement mode.
3.Multimeter measurement Can measure resistance, inductance and capacitance.
4.Universal digital bridge It can be used as general digital bridge.
5.Various injector tests It can test the resistance, inductance or capacitance parameters of various coil and piezoelectric common rail injectors, metering units and DRV valves.
6.Application field Production line quality control, incoming material inspection and screening (automatic comparison of standard parts and tested parts, allowable deviation can be set), Component testing, electronic maintenance industry.

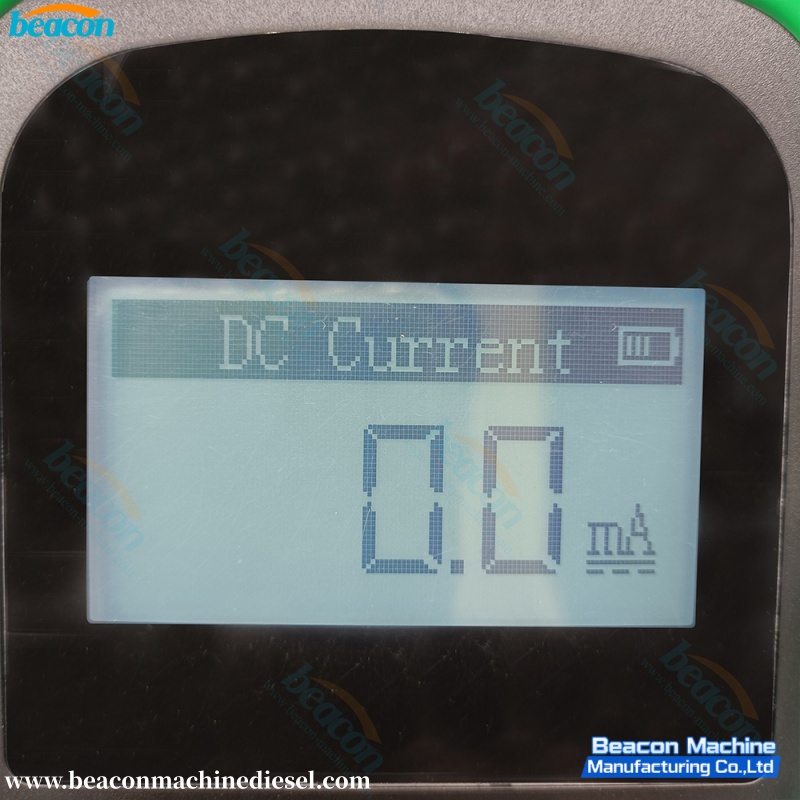

7.LCD backlight/Flashlight Short press the "BKLIT" key to turn on/off the LCD backlight. Long press the "BKLIT" button to turn on/off the top lighting.
8.Battery optional Rechargeable lithium battery and 9V alkaline battery are optional.
