Product Introduction

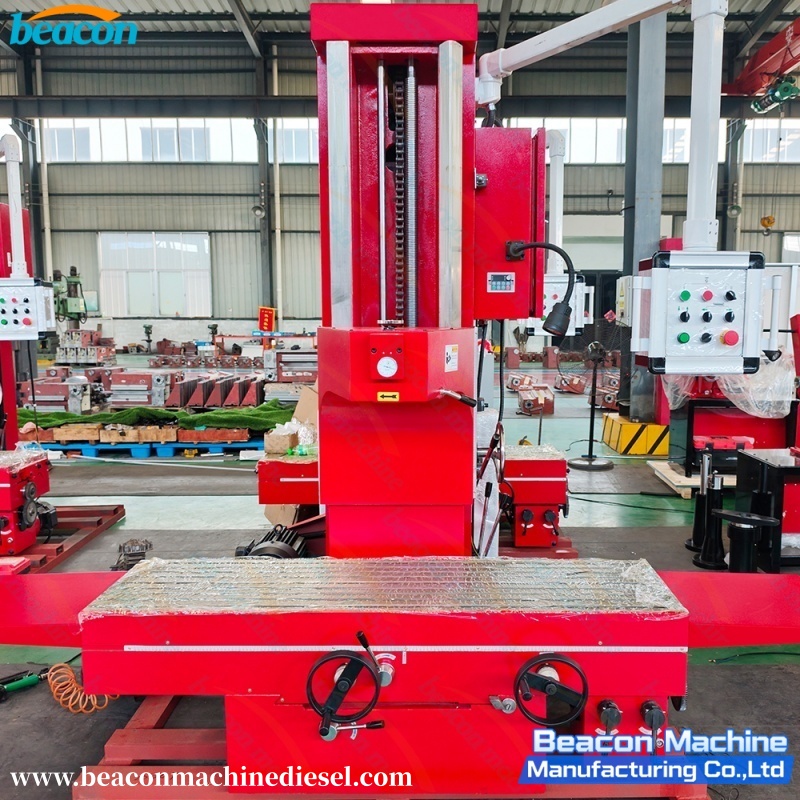

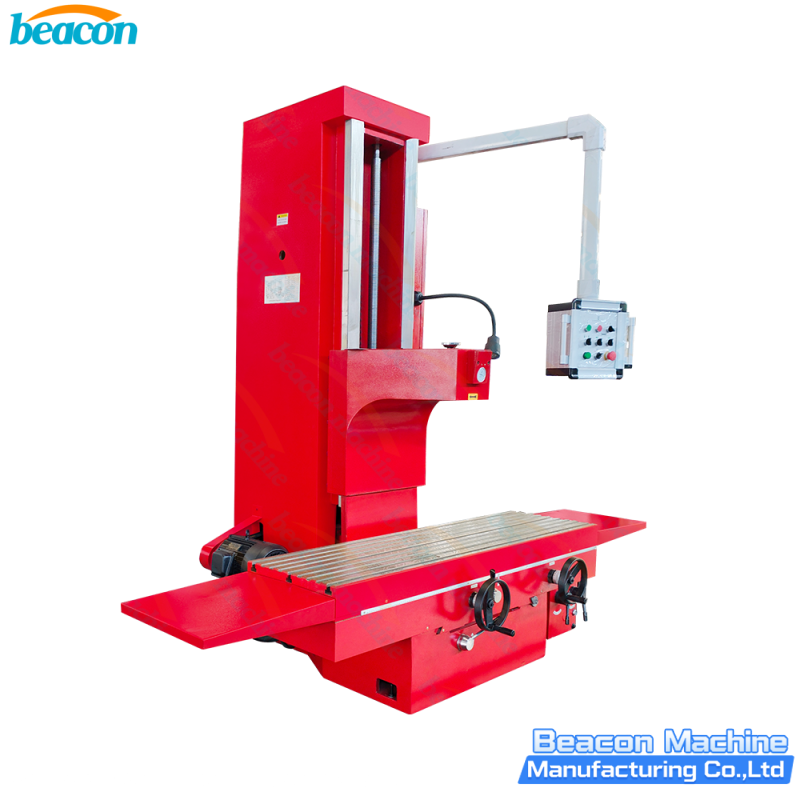

The T8018C Engine Cylinder Block Boring Machine is a versatile and powerful machine tool designed for the comprehensive reconditioning of engine blocks. Unlike standard boring machines, the T8018C integrates both boring and surface milling functions, allowing operators to resurface engine blocks and bore cylinders on a single setup. It is particularly renowned for its exceptional vertical processing capacity, boasting a maximum boring depth of 650mm , making it superior for handling deeper engine blocks found in commercial vehicles and heavy machinery.

T8018C T8018D Engine Cylinder Block Boring Machine Advantage

Dual Functionality (Boring & Milling): Capable of both cylinder boring (Dia 30-180mm) and surface milling (Max Dia 350mm), offering a complete solution for block refurbishment.
Deep Hole Capability: Features an extended spindle travel allowing for a maximum boring depth of 650mm , suitable for long-stroke engines.
Reliable Gear Transmission: Equipped with a mechanical gear box providing 6 distinct spindle speeds (175-600 r/min) and 3 feeding rates, ensuring high torque and consistent cutting force for tough materials.
High Efficiency: The spindle features a rapid moving speed of 2800 mm/min, significantly reducing non-cutting time and improving workshop throughput.
Large Working Range: A spacious worktable (1680x450mm) with long travel distances ensures compatibility with a wide variety of engine block sizes.
