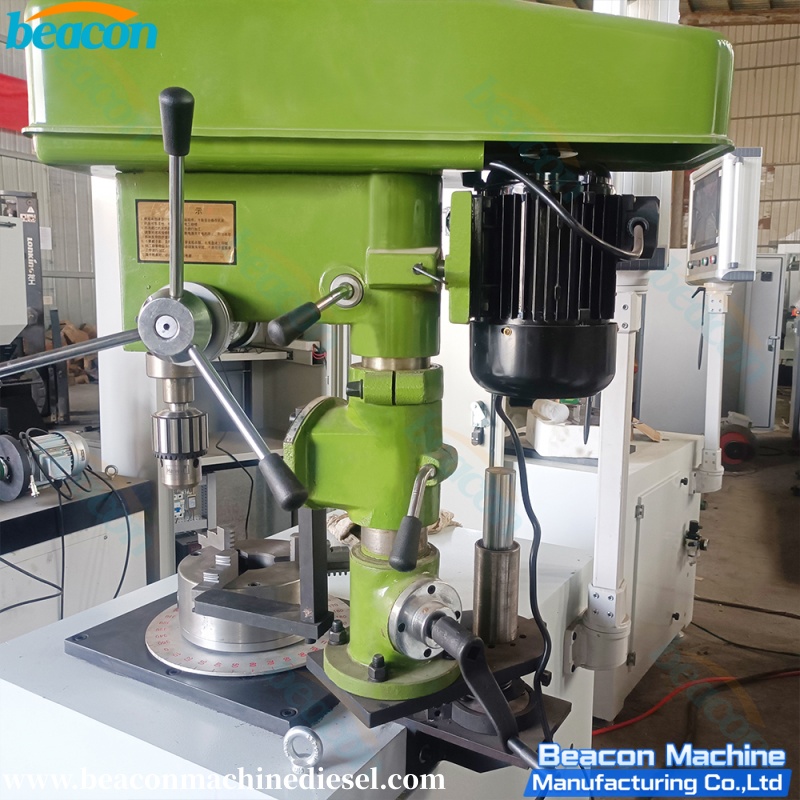

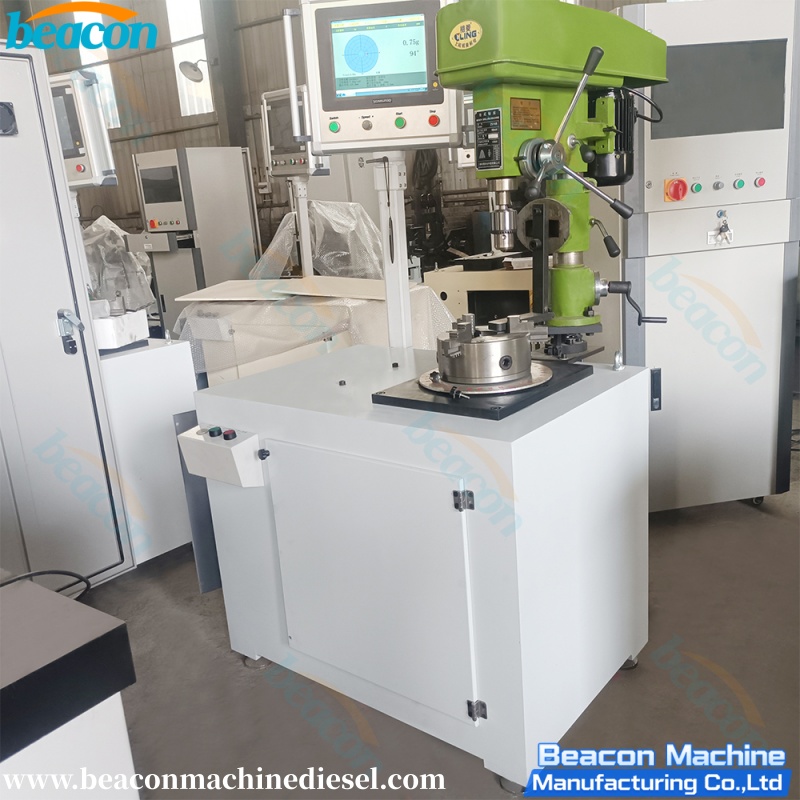

YLD-16 Vertical Single Plane Dynamic Balancing Machine with drill

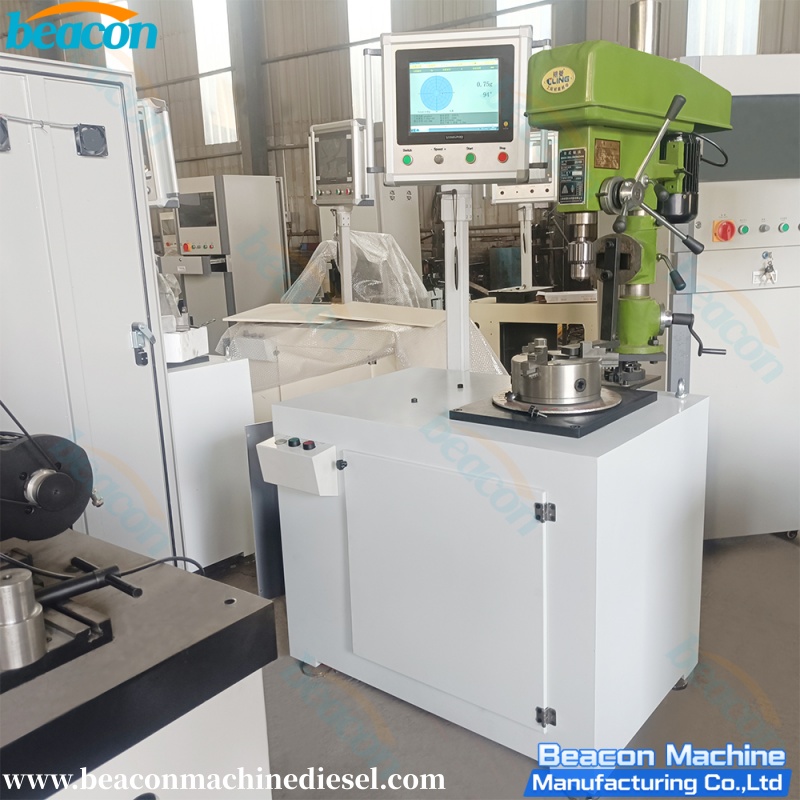

   YLD-16 Vertical Single Plane Dynamic Balancing Machine
    YLD-16 Vertical Single Plane Dynamic Balancing Machine is specifically engineered for the balancing of rotating bodies that do not have their own shaft, typically known as disc-shaped workpieces . Unlike horizontal machines, the YLD-16 features a vertical spindle design, making it the ideal solution for balancing components such as brake discs, flywheels, clutch pressure plates, pulleys, pump impellers, and cooling fans . This machine measures the static unbalance (single plane) effectively, ensuring smooth operation and reducing vibration in the final assembly.

        Vertical Design (Ergonomic): The vertical spindle orientation allows for easy top-loading and unloading of workpieces. Gravity helps in centering the part on the tooling, making it faster and more convenient than horizontal setups. Specialized for Discs: Optimized for single-plane balancing, which is the standard requirement for thin, disc-like components like automotive flywheels and pulleys. High Efficiency: With an unbalance reduction rate of ≥90%, it minimizes the number of correction runs needed, significantly boosting production line throughput. Wide Range: Capable of handling parts ranging from 0.5kg to 16kg with a maximum diameter of 500mm , covering most automotive and small industrial fan applications. Stable & Durable: The 1.1KW motor and rigid base structure ensure consistent performance and a long service life under industrial conditions.
