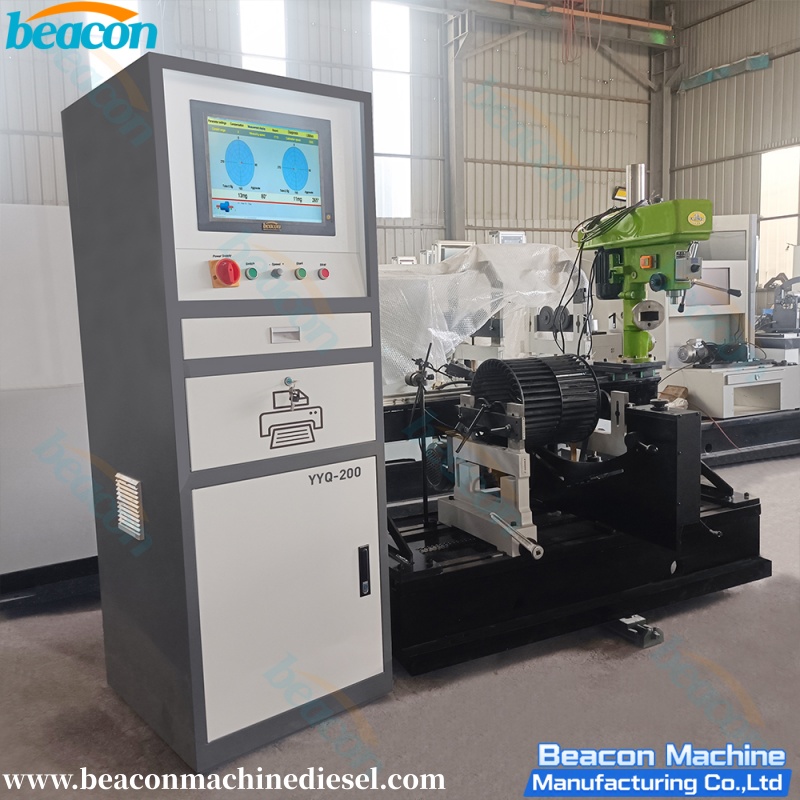

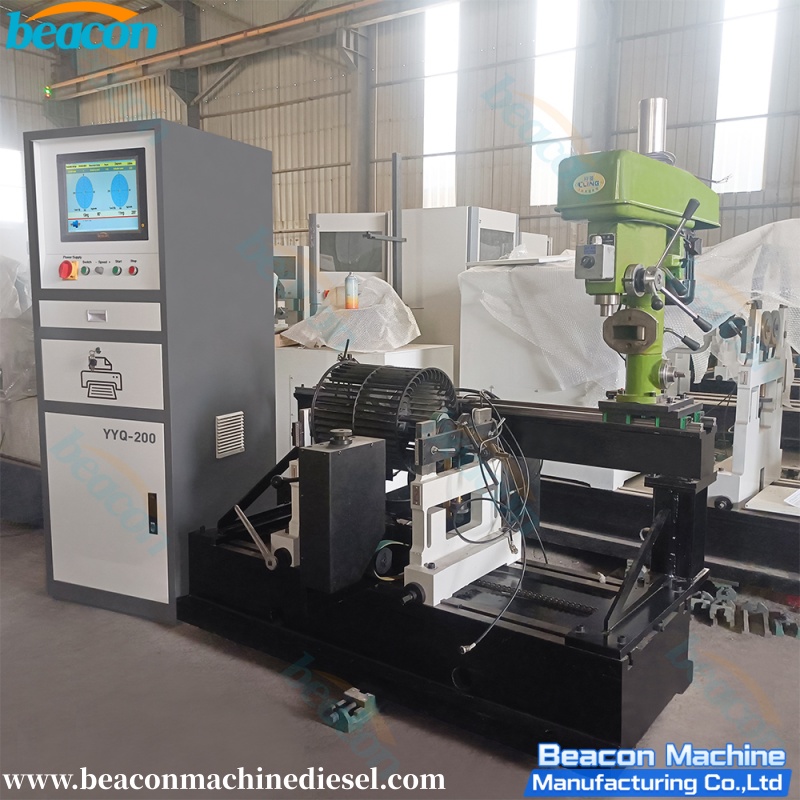

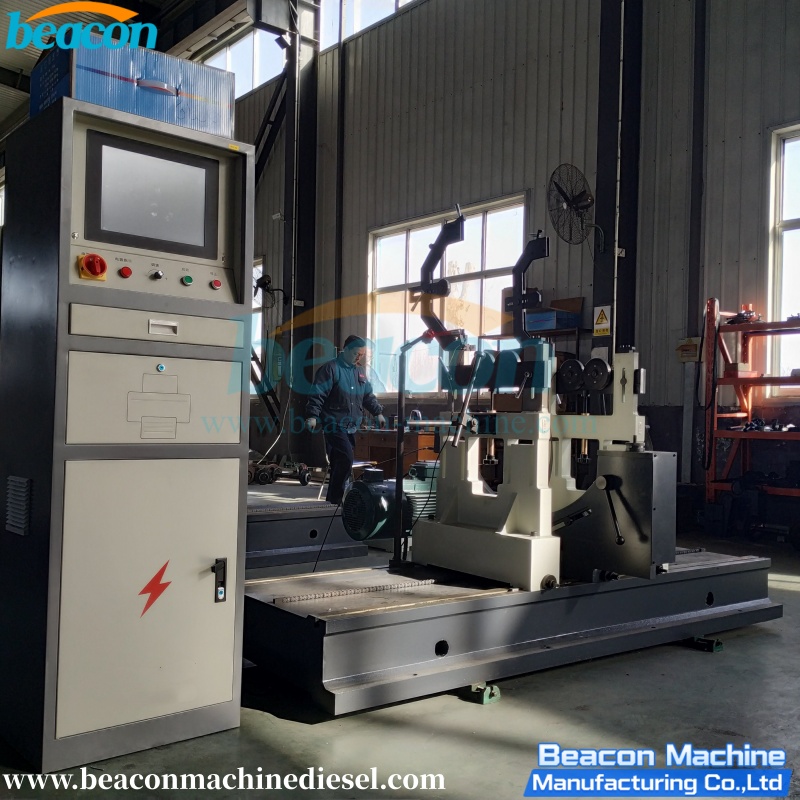

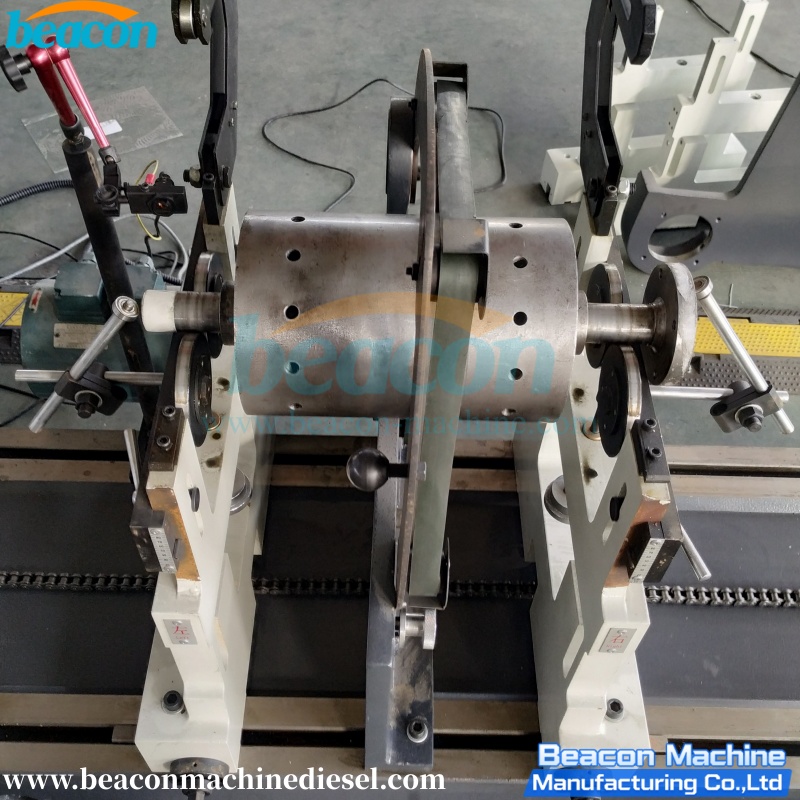

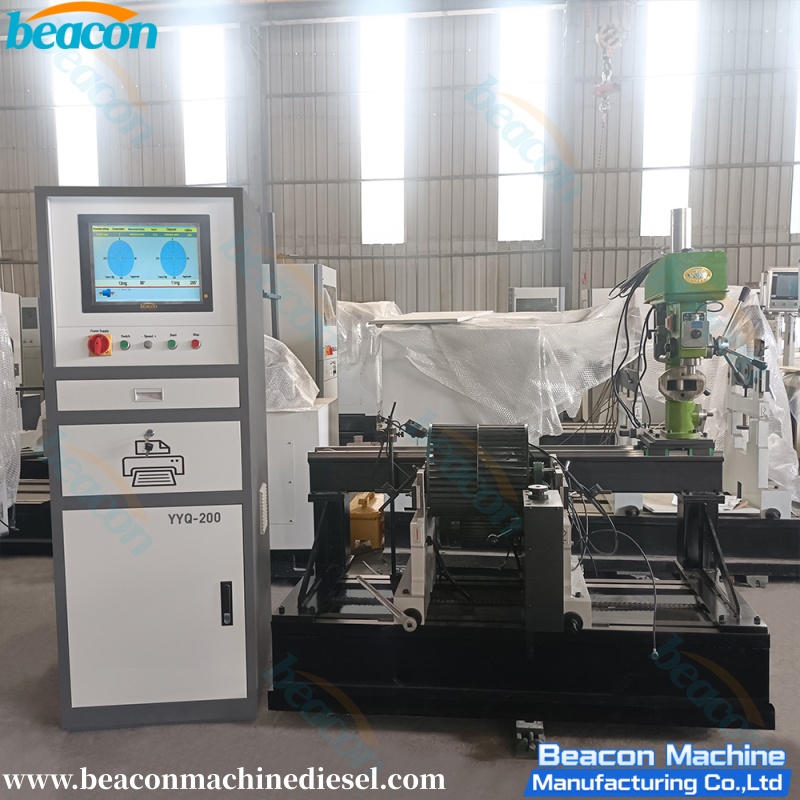

YYQ-200A Crank Shaft Turbo Balancing High Speed Dynamic Balancing Machine with drill

    YYQ-200A Crank Shaft Turbo Balancing High Speed Dynamic Balancing Machine
  YYQ-200A is a versatile hard-bearing dynamic balancing machine engineered to deliver exceptional stability for rotating components. By precisely identifying and correcting unbalance, this machine helps manufacturers eliminate harmful vibrations and noise, ensuring smoother operation and significantly extending the service life of motors, fans, and industrial rollers

      Advanced Control System: Equipped with a 32-bit industrial computer and a 19-inch LCD screen utilizing proprietary software for real-time data processing and clear visualization of unbalance amount and phase. Belt Drive Mechanism: Ensures high precision measurement without affecting the workpiece surface quality; ideal for rotors requiring high balancing accuracy. Robust Construction: Features a 1200mm lathe bed made of HT250 cast iron and QT450 integral swing frames, providing superior rigidity and vibration damping. High Sensitivity: Utilizes piezoelectric sensors and an elastic beam structure to detect even minute unbalance variations (≤0.5 gmm/kg). Variable Speed Control: Integrated 1.5 kW motor with a frequency converter allows for adjustable speeds between 200-1500 r/min to suit various workpiece types.
