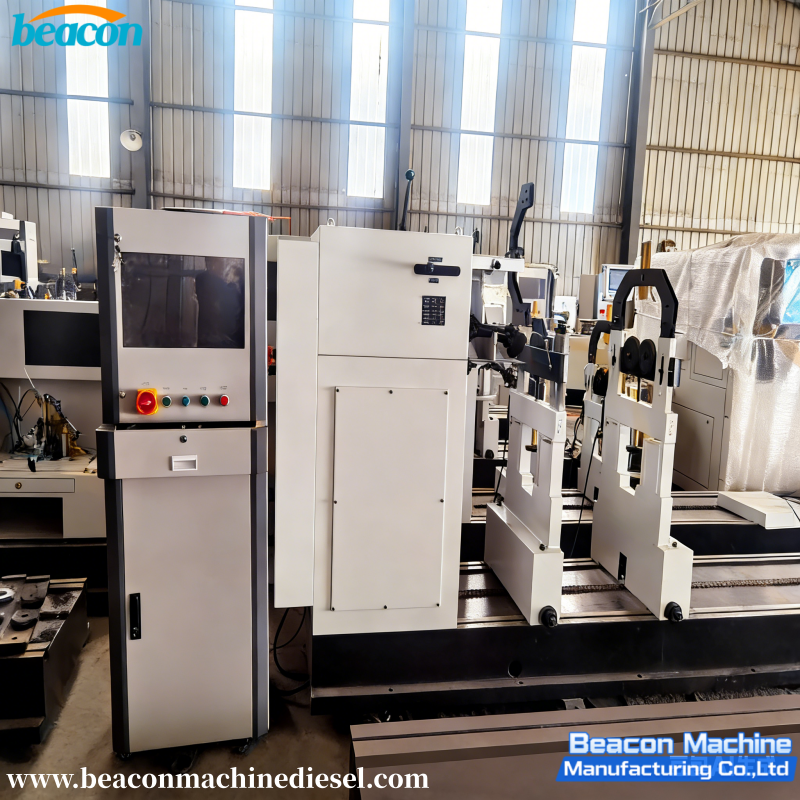

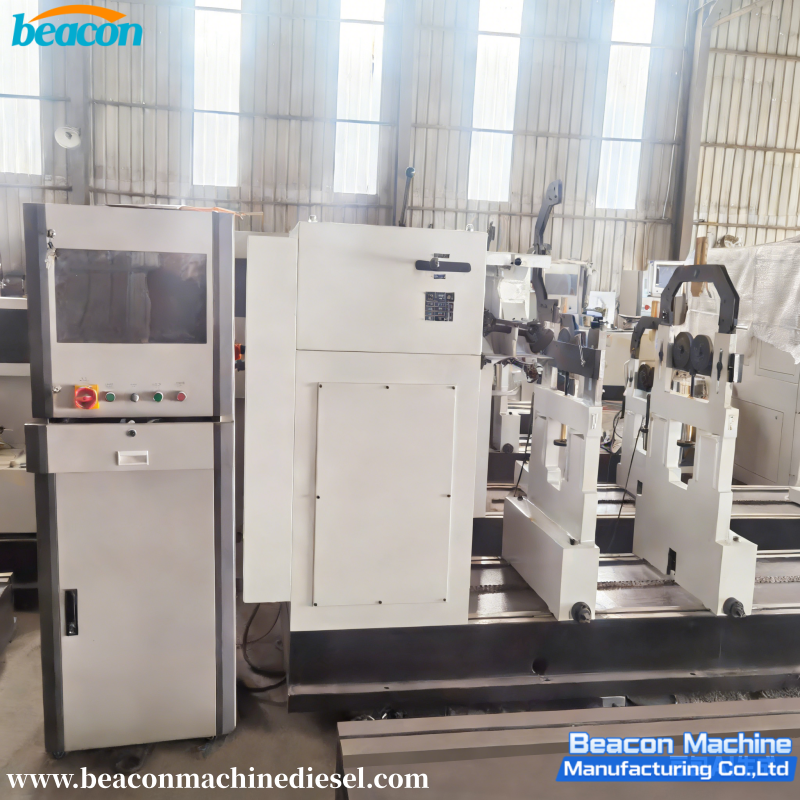

YYW-5000A Rotor Universal Joint Drive Horizontal Hard Bearing Dynamic Balancing Machine

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

   YYW-5000A Rotor Universal Joint Drive Horizontal Hard Bearing Dynamic Balancing Machine
   YYW 5000A Dynamic Balancing machine for heavy rotor the series is a horizontal hard bearing dynamic balancing machines, using roller bearing, universal coupling drive, two speed motor speed, computer measurement, color screen display and real time imbalance value and angle of rotation speed, widely used in motors, blowers, diesel engines, automotive and other industries can be single sided, two, and a number of correction to balance the surface measurements, suitable for shaft, disk type and focus of the overhang rotor.

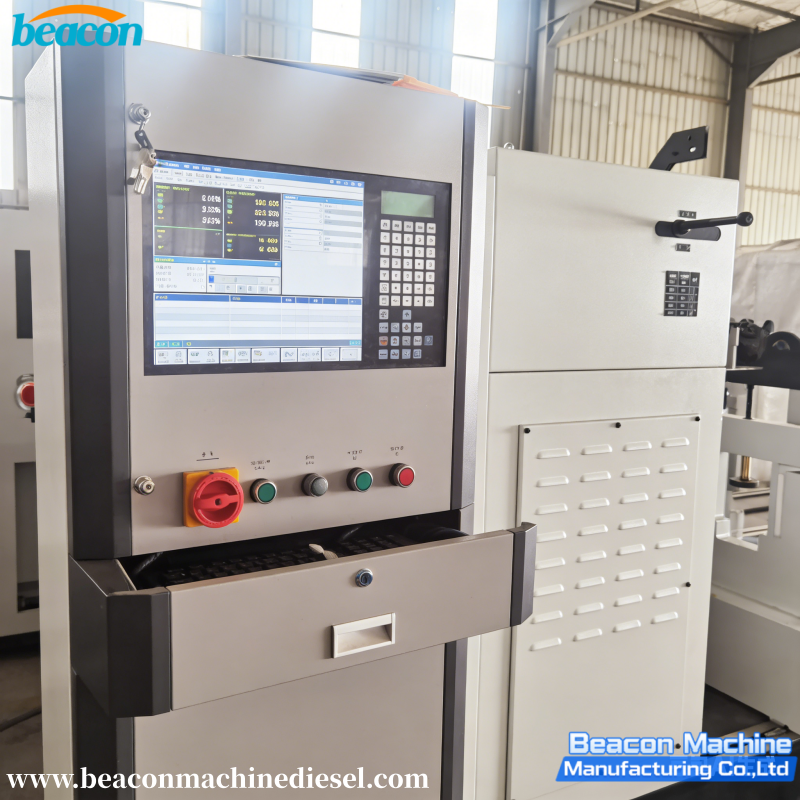

Hard Bearing Dynamic Balancing Machine

YYW-5000A Rotor Universal Joint Drive Horizontal Hard Bearing Dynamic Balancing Machine Advantage

Hard Bearing Dynamic Balancing Machine

parameter

Specifications

Parameters

Mass Scope of Workpiece (kg)

5000

Max Diameter of Workpiece (mm)

2400

Distance Between Two Support Bearings (mm)

Min:340

Max:2900

Journal Diameter Scope of Workpiece (mm)

40~360

Max Distance between Driving Flange and Right Bearing Support (mm)

3500

Rotational Speed of the Main Axis (r/min)

180-1500Neutral speed regulating

Motor Power (kw)

15

Min Achievable Residual Unbalance Amount(emar)

1g· mm/kg



MACHINE SIZE:



LENGTH 5500* WIDTH 1300*HEIGHT1800MM



The size also can be design by your request.

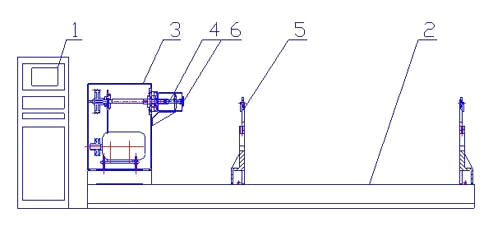

YYW 5000A Dynamic Balancing Machine for Heavy Rotor
