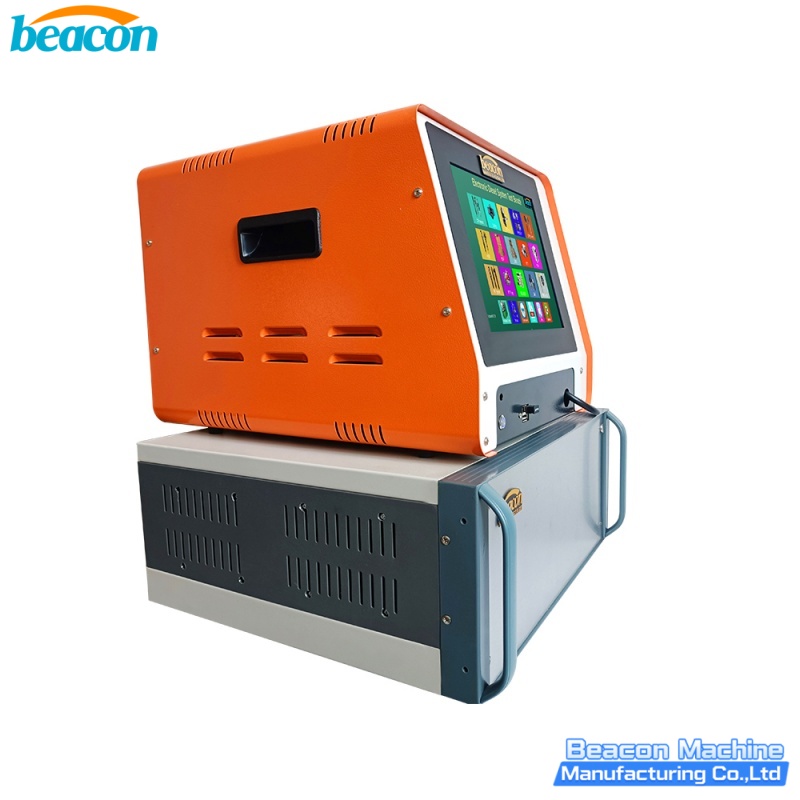

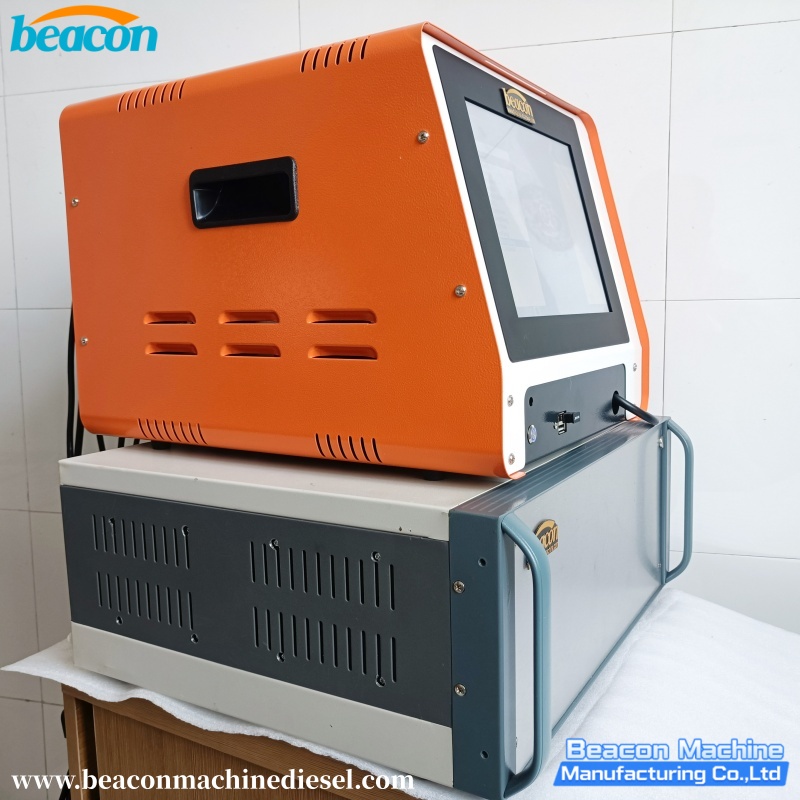

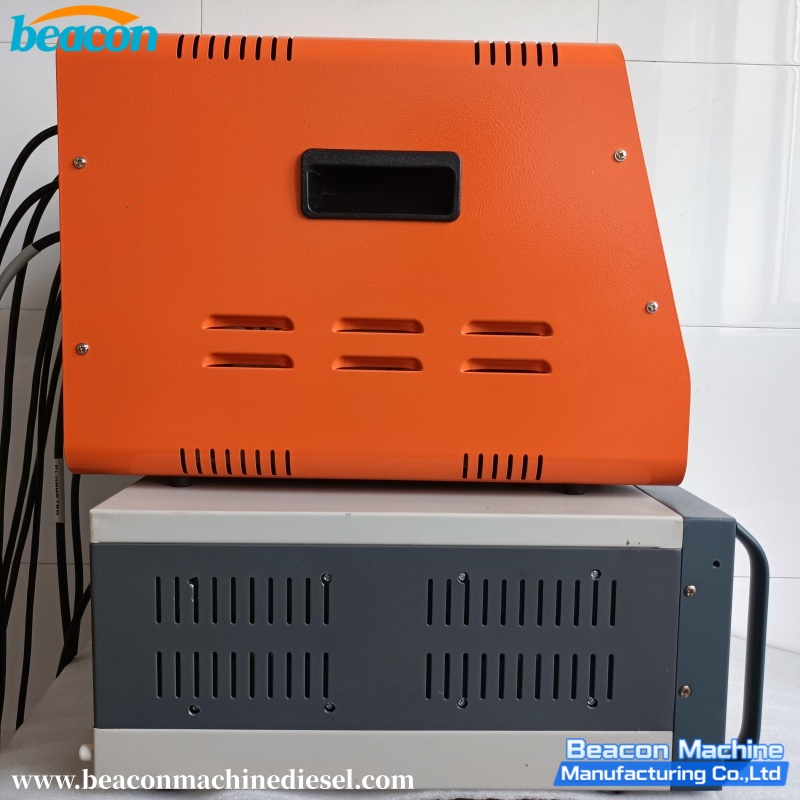

BEI-D Diesel System Multifunctional Tester (Dual Injector Driver)

BEI-D Diesel System Multifunctional Tester (Dual Injector Driver)

Product Introduction:
(1) Test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, solenoid or piezo common rail injector and pump(Included the pump with 2 ZME metering units).
(2) Injector coding can be generated, including Bosch IQA / IMA / ISA, Denso16/22/24/26/28/30/32QR, Delphi I2C / I3C, Siemens IIC and Cummins XPI(optional);
(3) Can test Bosch, Caterpillar, Cummins, Delphi EUI and EUP, including Delphi E3 double solenoid EUI and Cummins M11 double pulsing EUI (optional);
(4) Test HEUI injector and HEU pump (optional);
(5) Test Caterpillar 320D pump (optional);
(6) Test VP37,VP44,RED4,Denso V3/V4/V5 pump (optional);
(7) Test Cummins HPI injector,PT pump (optiona);
(8) Test Injector response time,EUI/EUP BIP；
(9) Test injector resistance and indctance.
(10) Test the armature lift of the injector solenoid valve (AHE).
(11) The test plan is consistent with the original data, and the test accuracy reaches the original factory standard;
(12) The database is fully open, the part number can be increased.
(13) Automatic network upgrade, test data and functions are kept up to date.

BEI-D Diesel System Multifunctional Tester (Dual Injector Driver)

Core Upgrade: Dual Injector Testing

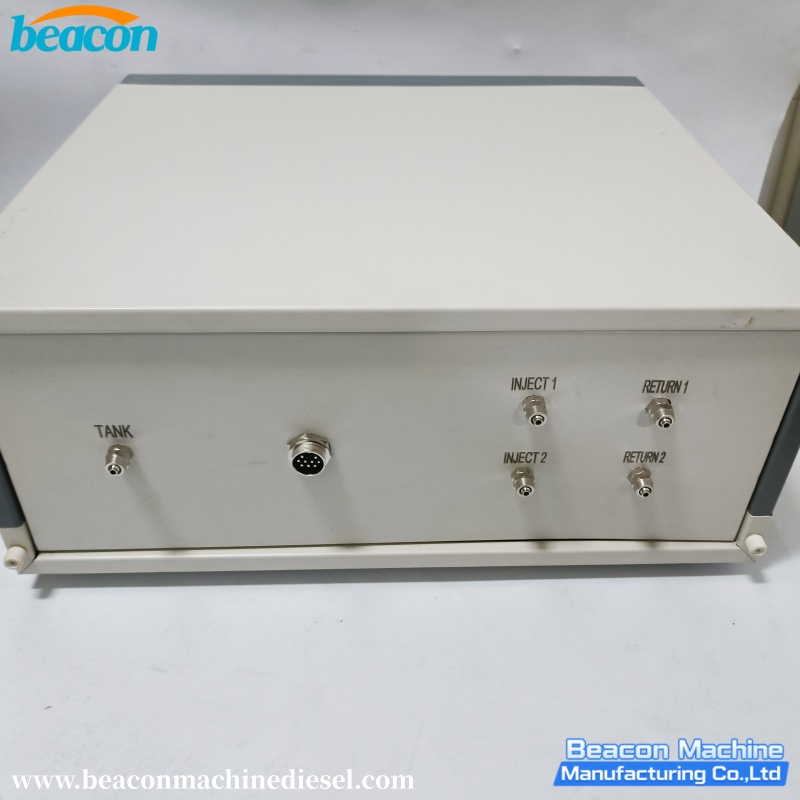

Unlike standard simulators, the BEI-D features a Dual-Channel Drive design , allowing it to test two common rail injectors simultaneously . This significantly improves workshop efficiency by cutting testing time in half.
Comprehensive Functionality:
Common Rail Injectors: Supports magnetic and piezo injectors (Bosch, Delphi, Denso, Siemens, CAT, Cummins).
Injector Coding: Generates coding for Bosch (IQA/IMA/ISA), Denso (QR), Delphi (C2I/C3I), Siemens (IIC), and Cummins XPI.
Pump Testing: Drives various CR pumps (Bosch CP1/CP2/CP3, Denso HP0/HP3/HP4, Delphi, Siemens) and supports ZME metering units.
EUI/EUP & HEUI: Capable of testing Electronic Unit Injectors/Pumps (including Dual Solenoid Delphi E3) and HEUI systems (CAT C7/C9) with optional cam boxes.
Precision Measurement: Features built-in functions for Injector Resistance/Inductance, Response Time (BIP) , and Armature Lift (AHE) measurement.
