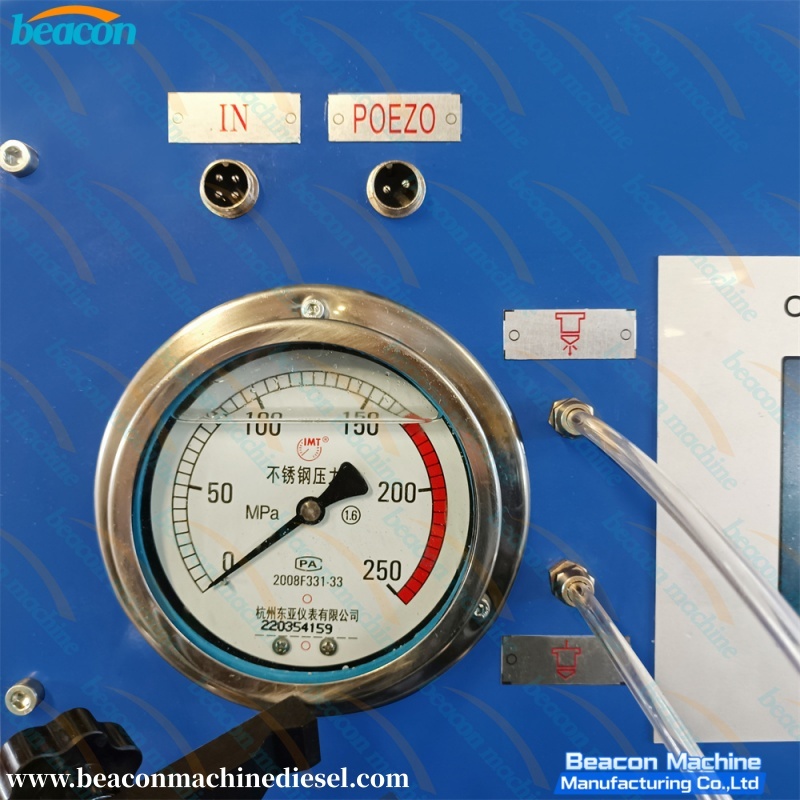

Eps100s Common Rail Injector Test Bench Calibration Machine With Pressure Gage

      Eps100s Common Rail Injector Test Bench Calibration Machine With Pressure Gage

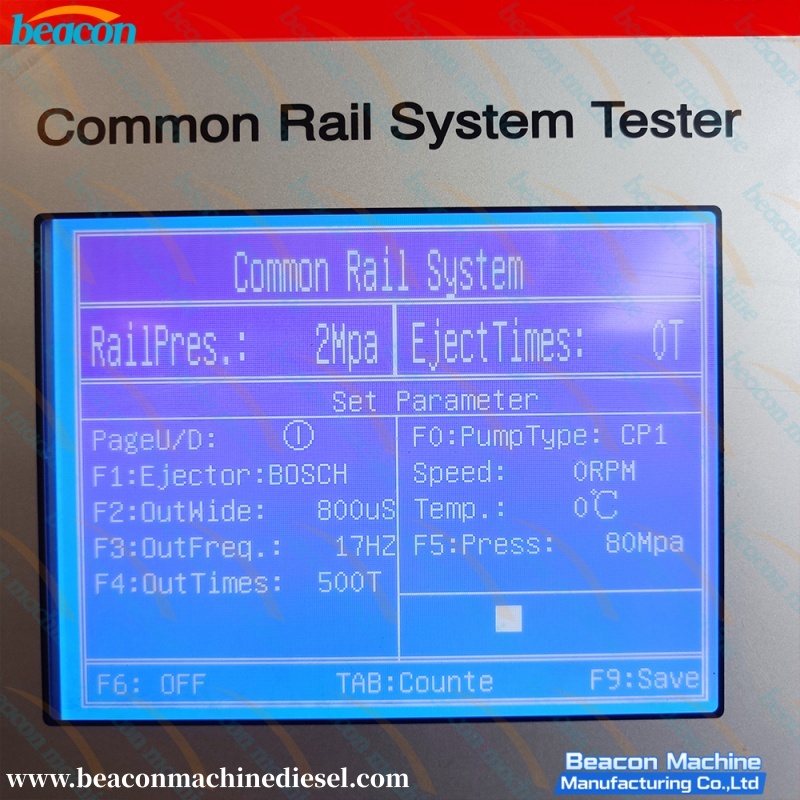

The EPS100s high-pressure common rail test bench imitates diesel engine ECU(Engine Control Unit), and provides common rail system control signals (CP1/CP2/ CP3/ HP3/ HP4/ DELPHI), such as Bosch, Denso, Delphi, and Siemens, to drive high-pressure common rail. The oil pump and the high-pressure common rail injector are working, and the driving signal parameters can be set by the user according to their actual conditions, and can be grouped and saved, which is convenient for maintenance personnel to judge and repair the working state of the high-pressure common rail system.

  CHARACTERISTIC
(1) While supporting high-speed solenoid valve type common rail injectors, it also supports the third-generation high-pressure common rail Technical piezoelectric crystal common rail injector;
(2) Single-channel common rail injector;
(3) Support multiple rail pressure sensors (BOSCH/DENSON/DELPHI);
(4) Intelligent PID algorithm, more precise pressure control;
(5) Short-circuit protection in both software and hardware makes the machine more reliable;
(6) Multiple language options;
(7) Safety protection design to prevent misoperation by operators, making it safer to use
(8) Not only can the flow sensor be used to display the flow from the computer, but also the flow can be displayed from the graduated cylinder.
FUNCTION

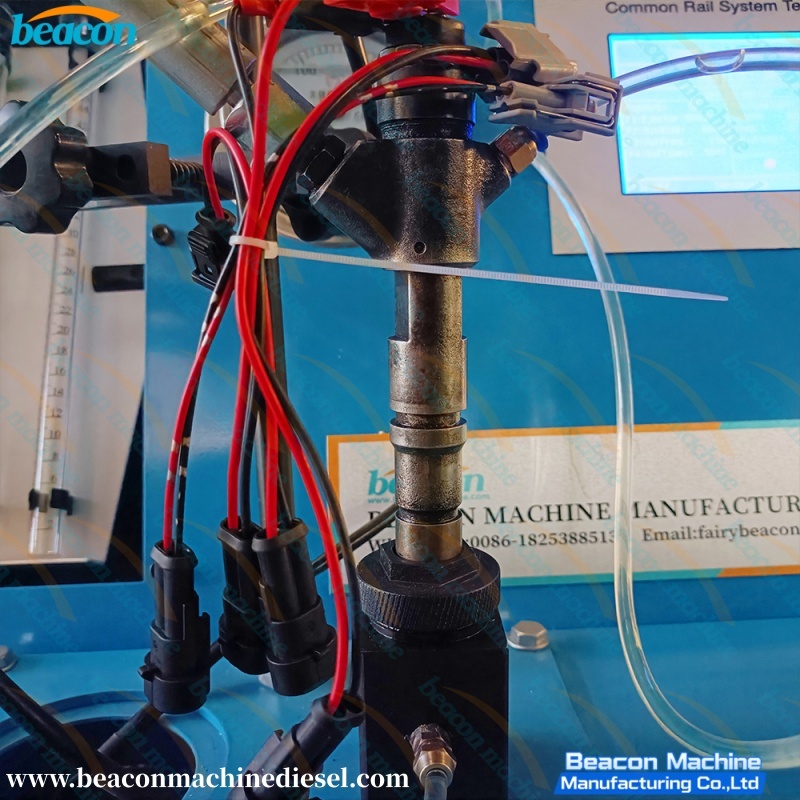

(1) Test the sealing performance of the common rail injector
(2) Test the full load performance of the common rail injector
(3) Test the mid-load performance of common rail injectors
(4) Test the idling performance of the common rail injector
(5) Test the pre-injection performance of the common rail injector
