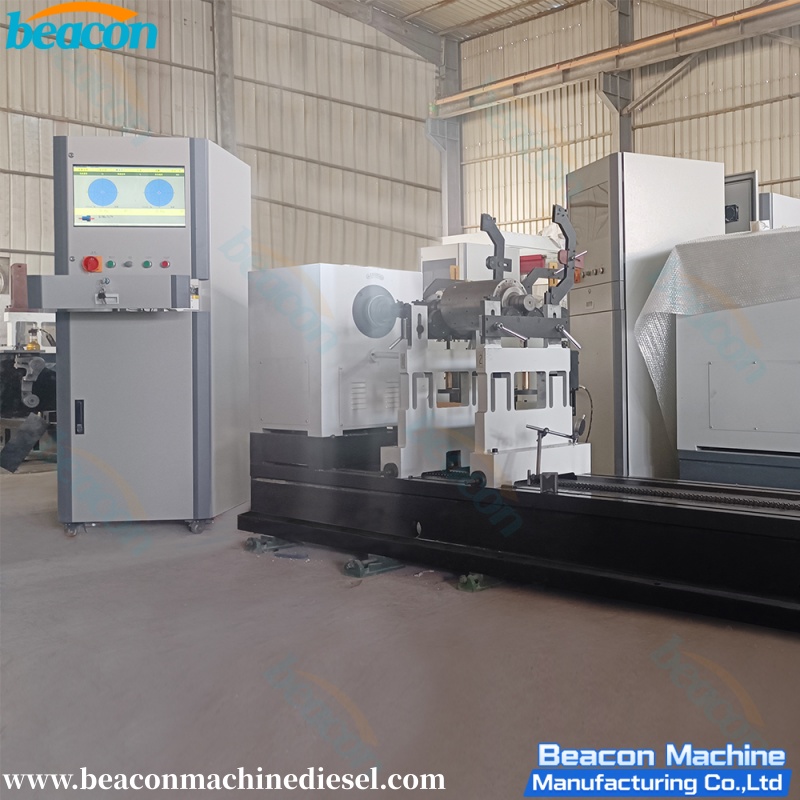

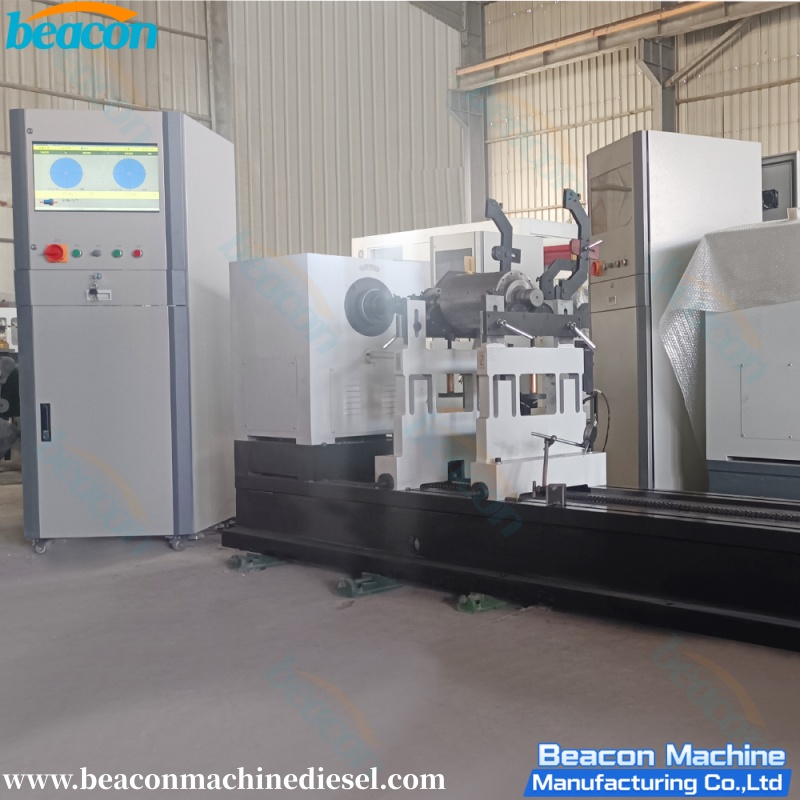

YYW-300A Hard Bearing Cardan Shaft Dynamic Balance Machine

•  YYW-300A Hard Bearing Cardan Shaft Dynamic Balance Machine


• 1.Features:
  General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using roller bearing, universal joint driven, screen display structure, industrial control computer processing the data. 19 inches LCD screen display unbalance amount, phase angle and real-time rotating speed. It is widely used in paper making machine, textile machine, agriculture machine, electric motor, blower fan, etc, can measuring balance on single, double, multifaceted interface, suited for large axle, plate, center of gravity overhung rotor.
  2.Main technical index
  Way of driving: universal joint driven, 5.5 kw motor
  Measuring system: independent developed dynamic balancing machine special measuring software.

It is applied in motors,generators rotor,impeller,pumps rotor,paper machinery tumble, textile machinery Cylinder,crankshaft,flywheel,cereals,oils and agricultural machinery parts, machine tool spindle,pulleys and many other areas It consists of two vibration sensor(locaqted behind around supporting rocker) a benchmark phase sensor (photoelectric header) one set of industrial microprocessor,and15″ color monitor. It can be convenient to display the value of the amount of unbalance of the work piece and phase, the operators drill or weld the corresponding calibration block in the work piece following the instructions of the imbalance of value and angle to balance the work pieces
